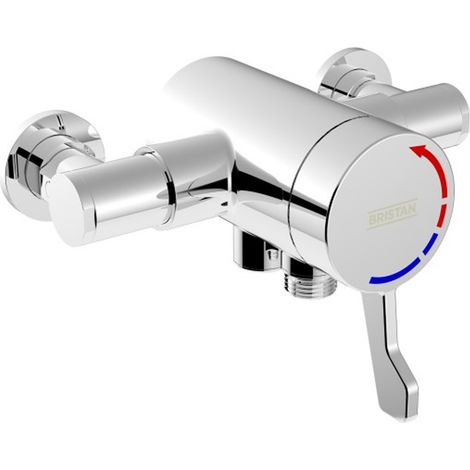

Bristan Opac Thermostatic Exposed Shower Valve Lever Handle - Chrome

Name: Bristan Opac Thermostatic Exposed Shower Valve Lever Handle - Chrome
Brand: BRISTAN
SKU: OP TS3650 EL C
Price: 444.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

The Bristan Opac Thermostatic Exposed Shower Valve features a sleek chrome finish and is designed for modern bathrooms. It provides precise control over both temperature and flow with a single sequential lever handle, ensuring high performance even at low pressure. This shower valve is equipped with safety features such as automatic shutoff in case of hot or cold water supply failure, making it a reliable choice for any home.

Technical specifications

Shower Type: Thermostatic Shower Valve

Controls: 1

Valve Position: Exposed

Valve Shape: Round

Handle Type: Lever

Shower Valve Outlets: 1

Minimum Pressure: 0.2 Bar

Maximum Pressure: 5.0 Bar

Shower Valve Height: 110mm

Shower Valve Width: 185mm

Shower Valve Depth: 135mm

Inlet Connection Size: 15mm

Outlet Connection Size: 1/2 BSP

Connection Centres: 140-160mm

Material: Brass

Colour: Chrome

Brand: Bristan

Collection: Opac

Style: Modern

Market: Domestic

WRAS Approval Number: 2005903

TMV2 Approval Number: NSF2276/0920

TMV3 Approval Number: NSF2277/0720

Flow Rates

Flow Rate @ 0.2 Bar: 3.9 l/min

Flow Rate @ 0.5 Bar: 6.3 l/min

Flow Rate @ 1.0 Bar: 6 l/min

Flow Rate @ 2.0 Bar: 7 l/min

Flow Rate @ 3.0 Bar: 7.5 l/min

Flow Rate @ 5.0 Bar: 8 l/min

Other information

Approved and tested under WRAS and TMV3. Supplied with a 1-year guarantee from the manufacturer.

Features

Brand
BRISTAN
Material
Brass
Intended use of the tap
Shower
Shape
Rounded
Height
11 cm
Tap activation mechanism
Mechanical
Number of outlets
1
Type of installation method
For mounting
Tap type
Single-lever mixer
ManoMano Reference
ME36415804
MMID
815510745999
Product code
OP TS3650 EL C
EAN
5014868065946
