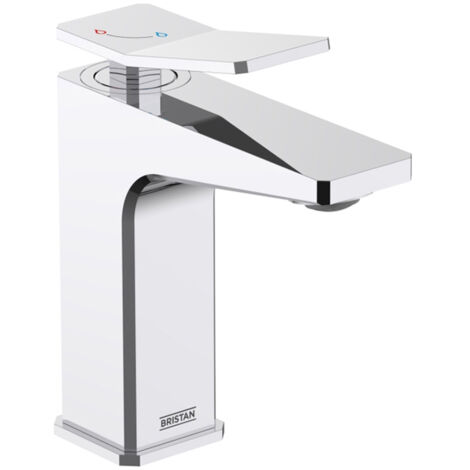

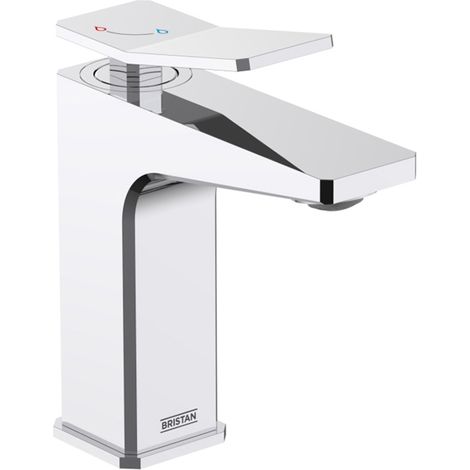

Bristan Tangram Eco Start Basin Mixer Tap with Clicker Waste - Chrome

Sold by Heat & Plumb and 1 other seller

Often purchased together

Product information

Description

Add a tap that is designed to help to reduce your energy usage with the Bristan Tangram Eco Start Basin Mixer Tap with Clicker.

This tap has a modern eco-start feature that is there to reduce how much hot water you use and therefore how much your boiler needs to fire up too.

It does this by setting the water flow to cold water as a standard, this is then changed to hot water when you move the lever to the middle position.

As well as this, it comes with a flow regulator. This flow regulator, as the name suggests, limits the flow of water in the tap and therefore reduces the amount of water that you use.

Made from high quality brass, this tap comes with WRAS approval and has a hard-wearing, scratch resistant coating which will last for many years. It also comes with ceramic cartridges, which are designed to help to increase the longevity of the tap too.

Features and Benefits:

  • Comes complete with clicker slotted basin waste
  • Eco Start technology saves energy by having cold water as the default central start position of the tap handle
  • Hot water is only activated when the tap lever is moved from the central position, so your boiler is not unnecessarily fired up
  • This tap has a flow regulator, which limits the flow of water to 5 litres per minute, reducing the amount of water you use
  • Long life ceramic cartridge for added durability and smooth control
  • A hard-wearing, flawless, scratch resistant chrome finish that lasts for years
  • Manufactured from brass material
  • Salt spray tested to ensure added durability
  • WRAS approved product
  • Guarantee: Lifetime including parts (1 year on labour and 3 year on Gold, Painted and other Special Finishes)
FixtureBasin
Tap TypeBasin Mixer
MountingDeck
Minimum Pressure0.5 Bar
Maximum Pressure5.0 Bar
Maximum Hot Water Temperature60 Degree C
Maximum Static Pressure10 Bar
Tap Handle(s)1
Tap Hole(s)1
Tap Head ShapeLever
Tap Operation28mm Cold Start Upper Seal Cartridge
Tap Valve TypeManual
Tap Height160mm
Tap Spout Reach105mm
Base to Spout Reach110mm
Inlet Connection1/2
Outlet ConnectionM24 5lpm Coin-Slot Aerator
Tap FeaturesIncludes Waste
System SuitabilitySuitable for all plumbing systems
Tap Body ShapeSquare
MaterialBrass
ColourChrome
BrandBristan
CollectionTangram
StyleModern
MarketDomestic
EAN Barcode5014868075013
Manufacturer Part Number(s)TAN ES BAS C
Flow Rate @ 0.5 Bar3.2 l/min
Flow Rate @ 1.0 Bar4.2 l/min
Flow Rate @ 2.0 Bar5.2 l/min
Flow Rate @ 3.0 Bar5.6 l/min
Flow Rate @ 5.0 Bar5.6 l/min

Features

  • Brand
    BRISTAN
  • Colour
    Yellow
  • Warranty
    10 year(s)
  • Material
    Brass
  • Adapted for PRM
    No
  • With waste included
    Yes
  • With anti-limescale function
    No
  • Plumbing faucet feature
    Single-lever mixer
  • Max. flow rate
    5.6 l/min
  • Intended use of the tap
    Wash basin
  • Hand shower included
    No
  • Pull-out spray
    No
  • Water saving
    Yes
  • Pipe thread size
    1/2" (15x21)
  • Shape
    Square
  • Beak shape
    Universal
  • Height
    16 cm
  • Mixer shower includes
    Flexible
  • Flow limiter
    Yes
  • Temperature limiter
    No
  • Tap activation mechanism
    Mechanical
  • Thermostatic mixer
    No
  • Number of outlets
    1
  • Number of jets
    1
  • Pcs per pack
    1
  • Concealed tap
    No
  • Wall-mounted tap
    No
  • 38°C Safety
    No
  • Tap head only
    No
  • Cool body thermostatic
    No
  • Water saving type
    Flow restrictor
  • Type de perçage
    Single hole
  • Type of installation method
    For mounting
  • Tap type
    Single-lever mixer
  • ManoMano Reference
    ME87078225
  • MMID
    370292679292
  • Product code
    TAN ES BAS C
  • EAN
    5014868075013
