Product information

Description

General description

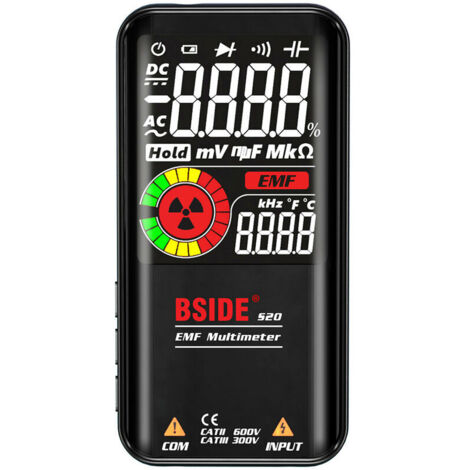

The BSIDE S20 Smart EMF Multimeter is a versatile 2-in-1 device that functions as both an electromagnetic field radiation detector and a universal meter, making it ideal for both professionals and household use. It features a large 3.5-inch color screen with a high accuracy display, capable of measuring a wide range of electrical parameters.

Technical specifications

DC Voltage: 0~620V (DC mode), 0.5~620V (Auto mode)

AC Voltage: 0~620V (AC mode), 1.0~620V (Auto mode)

Resistance: 1Ω~10.00MΩ

Capacitance: 0.5~1000μF, 1000~6000μF

Frequency: 10~1000Hz

Diode: Measures diodes within 1.0V

EMF Detection: Yes

Continuity Buzzer: Yes

Firewire Recognition: Yes

Data Hold: Yes

Flashlight: Yes

Environmental Temperature: Yes

Material: ABS

Safety Level: CAT.II 600V, CAT.III 300V

Max Display: 9999 digits

Sampling time: about 0.4 seconds

Auto power off: 5 minutes

Operating environment: 0 ~ 40°C, 0 ~ 80% RH

Storage environment: -10 ~ 60°C, 0 ~ 70% RH

Operating altitude: 2000 m

Battery: 1 * 3.7V 800mAh li-ion battery

Item size: 143.4 * 70.9 * 15.7 mm / 5.65 * 2.79 * 0.62 inches

Item weight: 119 g / 4.20 oz

Package weight: 320 g / 11.29 oz

Package size: 16.9 * 9.5 * 4.4 cm / 6.65 * 3.74 * 1.73 inches

Compatibility and accessories

Includes: 1 * EMF Multimeter

1 * Test Pen

1 * Charging Cable

1 * Protective Sleeve

1 * Storage Pouch

1 * Manual (English)

Usage

The BSIDE S20 is designed for easy operation with intelligent functions such as automatic identification of AC voltage, DC voltage, and resistance in automatic mode. It features a buzzer that sounds when live voltage is detected or when continuity is recognized, enhancing user safety and convenience.

Features

Brand
GOTRAYS
Shockproof
No
Battery or cell included
Yes
Smart
Yes
Memory function
Yes
Measured function(s)
Resistance
Height
5 cm
Multimeter Safety Ratings (cat)
III
Width
22 cm
Length
18 cm
Material
Acrylonitrile butadiene styrene (ABS)
Display mode
Digital
Backlighting
Yes
ManoMano Reference
ME93910782
MMID
865374989430
Product code
GB-2025969
EAN
7424106091268

Multimeter buying guide

A multimeter is an essential tool used to measure various electrical values. From digital multimeters with screens to analogue models with needle scales, multimeters all look alike so it can be tricky to choose the right device. Read on for our best safety practices and tips to help you find the best multimeter!

BSIDE S20 Smart EMF Multimeter Electromagnetic Radiation Detector 3.5 inch Color Screen 9999 Counts Auto Range Rechargeable Universal Meter Radiation Monitor AC/DC Voltmeter Ohmmeter Resistance Test C
