General description
The 35mm ceramic cartridge is designed for kitchen faucets, sink faucets, and shower faucets. Made from high-quality materials, it offers excellent sealing performance, ensuring no water leakage. The cartridge features a precision three-layer filter that effectively removes impurities from tap water while reducing noise and conserving water resources.Technical specifications

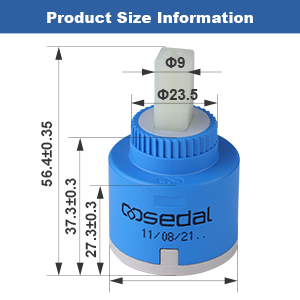

- Diameter: 35mm
- Recommended torque: 10-12 Nm
- Opening angle: 25°
- Rotation angle: 90°
- Maximum static pressure: 12 bar
- Recommended pressure: 1.0-1.5 bar
- Pressure range: 28-35 bar
- Recommended operating temperature: ≤ 65°C
- Constant temperature: < 2.1°C
- Fidelity: < 3.5°C
- Sensitivity: ≥ 12mm (r ≥ 69mm)
- Noise level: 22.40-27.00 dB
- Life cycle: EN817 70,000 cycles
- Flow rate at 3 bar (D - restrictor): Mixer: 20.20 l/min, Cold red position: 19.30 l/min
- Close torque: 0.19-2.25 Nm (left), 0.22-0.33 Nm (right)
