General description

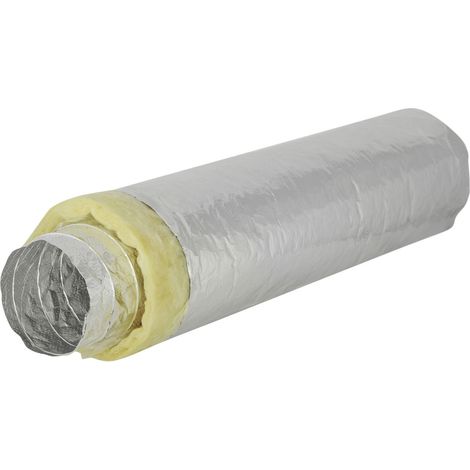

CasaFan flexible aluminium tube CasaIsoFlex is designed for effective thermal and acoustic insulation, making it ideal for air supply and extraction systems. Its highly flexible structure prevents condensation, ensuring optimal performance in various environments.Technical specifications
- Material: Two layers of aluminium laminated with spring wire coil for reinforcement
- Insulation: 25 mm glass fibre (16 kg/m³)
- Max. temperature range: -30 to +40°C
- Max. operational pressure: 2000 Pa
- Max. flow speed: 30 m/s
| Model | Nominal width (mm) | Ø Inside (mm) | Ø Outside (mm) | Length (m) |
|---|---|---|---|---|
| CasaIsoFlex 80 | 80 | 82 | 140 | 10 |
| CasaIsoFlex 100 | 100 | 102 | 160 | 10 |
| CasaIsoFlex 125 | 125 | 127 | 185 | 10 |
| CasaIsoFlex 150 | 150 | 152 | 210 | 10 |
| CasaIsoFlex 160 | 160 | 160 | 218 | 10 |
| CasaIsoFlex 200 | 200 | 203 | 261 | 10 |
| CasaIsoFlex 250 | 250 | 254 | 312 | 10 |
| CasaIsoFlex 315 | 315 | 315 | 373 | 10 |
| CasaIsoFlex 355 | 355 | 355 | 413 | 10 |
| CasaIsoFlex 400 | 400 | 400 | 458 | 10 |
