General description

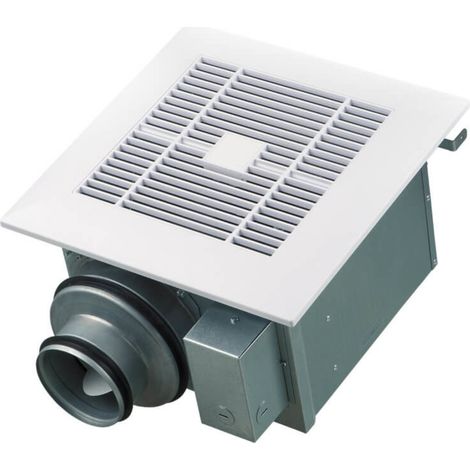

The Ceiling-mounted Extractor Fan CBF 200 is designed for efficient ventilation in various spaces such as bathrooms, kitchens, and living rooms. It features a robust construction with a galvanized steel housing and an ABS plastic impeller, ensuring durability and performance.Technical specifications
- Voltage: 220-240 V ~ 50 Hz
- Nominal diameter: 100 mm, 150 mm
- Speed levels: 2
- Wattage: 20 / 29 W (min./max.)
- Current consumption: 0.1 / 0.13 A (min./max.)
- Revolutions per minute: 714 / 1026 (min./max.)
- Airflow rate: 130 / 210 m³/h (min./max.)
- Airflow rate: 36 / 58 l/s (min./max.)
- Sound pressure level: 24 / 27 dB(A) (min./max.)
- IP code: IPX2
- Insulation class: I
- Ambient temperature: +1°C to +40°C
- Weight: 5.3 kg
Compatibility and accessories
- Includes mounting frame
- Suitable for pipe systems with high air resistance (diameters 100 mm and 150 mm)
Installation
- Mounting options: ceiling
Usage
- Ideal for permanent and interval ventilation in bathrooms, showers, kitchens, and living rooms
