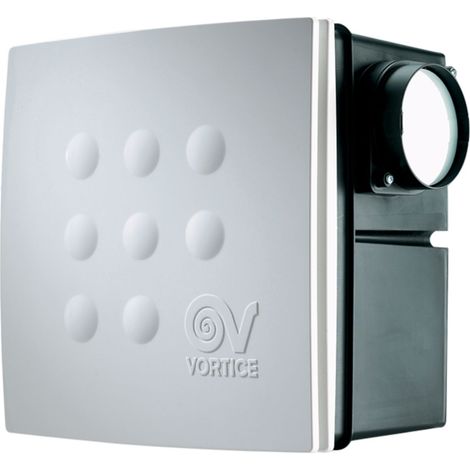

Centrifugal Duct Fan Quadro Super I T UP

Product out of stock

Product information

Description

General description

The Centrifugal Duct Fan Quadro Super I T is designed for efficient ventilation in various settings. It features a robust ABS plastic housing that is UV-resistant and non-yellowing, ensuring durability and longevity.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal diameter: 100 mm

Speed levels: 3

Wattage: 50 / 115 W (min./max.)

Current consumption: 0.36 / 0.5 A (min./max.)

Revolutions per minute: 1280 / 2190 (min./max.)

Airflow rate: 140 / 285 m³/h (min./max.)

Total pressure Pmax: 196 / 476 Pa (min./max.)

Sound pressure Lp-3m: 33.6 / 46.7 dB(A) (min./max.)

Max. temperature for continuous operation: 50°C

IP code: IPX4

Insulation class: II

Diameter duct connector: 97 mm

Dimensions front cover: 314 x 314 x 37 mm

Total depth: 227 mm

Total depth with duct connector: 264 mm

Weight: 4.3 kg

Other information

Includes wall controller with 3 speeds / off

Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time

Washable synthetic fibre fleece filter

Thermal overload protection

Self-lubricating bush bearings

Non-return valve prevents cold air from infiltrating once the fan is turned off

Mounting options: flush-mounted, any position

Exhaust nozzles on the side and back allow connection to a second room

Features

Brand
VORTICE
Colour
White
Power
115 W
Intended use
Indoor
Height
26.4 cm
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Weight
4.3 kg
Depth
22.7 cm
Noise level
46.7 dB
Voltage
240 V
Type of installation method
Mortise mount
Fan type
Column fan
ManoMano Reference
ME84023899
MMID
734727053925
Product code
9012024
EAN
4024397381807
