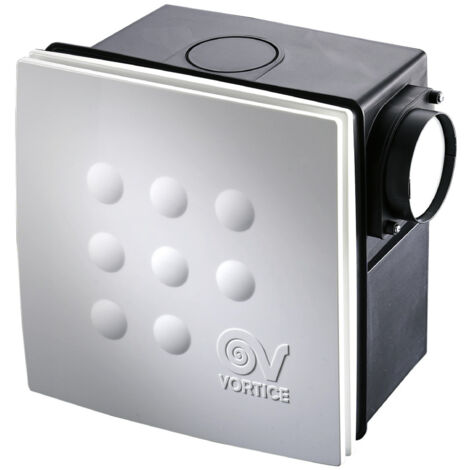

Centrifugal duct fan Quadro Super EP AC THCS UP 285 m³/h

Product out of stock

Product information

Description

General description

The Quadro Super EP AC THCS is a high-performance centrifugal duct fan designed for efficient air circulation in various environments. With a robust construction and advanced features, it ensures optimal airflow while maintaining low noise levels.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Housing colour: White

Housing material: ABS plastic, non-yellowing, UV-resistant

Nominal diameter: 100 mm

Number of speeds: 2

Power: 50 / 115 W

Current consumption: 0.36 / 0.5 A

Revolutions per minute: 1280 / 2190

Airflow rate: 140 / 285 m³/h

Total pressure Pmax: 196 / 471 Pa

Sound pressure Lp-3m: 33.6 / 46.7 dB(A)

Max. temperature for continuous operation: 50°C

IP code: IPX4

Insulation class: II

Weight: 4.3 kg

Dimensions (H x W x D): 314 x 314 x 191 mm

Depth including connector: 217 mm

Integral time-delay relay: Adjustable 3 - 20 min

Integral humidity sensor: Adjustable 60%, 70%, 80%, 90% RH

Thermal overload protection

Ball bearings

Non-return flap on the connection port

Installation

Mounting options include flush mounting in any position, allowing for versatile installation in various settings.

Usage

The fan operates automatically based on humidity levels. It turns off after the humidity level falls below the selected limit, following the adjustable time delay.

Features

Brand
VORTICE
Width
31.4 cm
Height
31.4 cm
Weight
4.3 kg
Power
115 W
