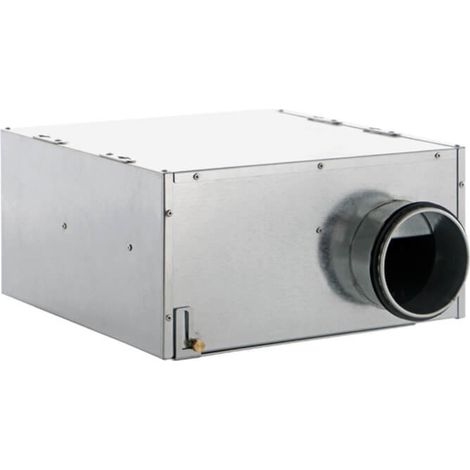

Centrifugal inline fan range Vortice CA IL Quiet

Name: Centrifugal inline fan range Vortice CA IL Quiet
Brand: VORTICE
SKU: 16261
Availability: OutOfStock

Product out of stock

Product information

Description

Dimensions and technical details

230 Volt ~ 50/60 Hertz
Various options availabe
Housing material: galvanised steel sheet, corrosion-resistant
50 mm melamine coating drastically reduces acoustic emission to adjacent rooms
Backwards-bent centrifugal impeller ensure high efficiency
External rotor motor with ball bearing, protected against overheating
Electric terminal box made from plastic resin, resistant to impact and aggressive compounds
IP code terminal box: IP55
IP code motor: IP44
Insulation class: I
Max. temperature for continuous operation: +40°C
Optional speed controller sold separately
Easy cleaning and maintenance
Integrated mounting brackets on the housing
Mounting options: wall, ceiling, false ceiling
Round connecting pieces with rubber lip gaskets allow an airtight connection to standard pipes
Ideal for extraction air small to large quantities of air in residential, commercial and industrial buildings
Application: technical rooms, damp rooms, offices, laboratories, retail stores, bars, restaurants, laundries, etc.

Model	Nominal size (mm)	Power (W)	Current consumption (A)	Airflow rate (m3/h)	Total pressure Pmax (Pa)	Sound pressure (Lp-3m dB(A))	Weight (kg)
CA IL Quiet 100	100	50	0.22	250	350	30.5	5.6
CA IL Quiet 125	125	50	0.22	310	350	30.5	5.6
CA IL Quiet 150	150	100	0.44	460	435	34.5	6.0
CA IL Quiet 150 Q	150	50	0.23	350	300	30.5	6.0
CA IL Quiet 160	160	100	0.46	460	450	34.5	6.2
CA IL Quiet 160 Q	160	50	0.23	350	300	28.5	6.2
CA IL Quiet 200	200	140	0.46	460	550	38.5	9.6

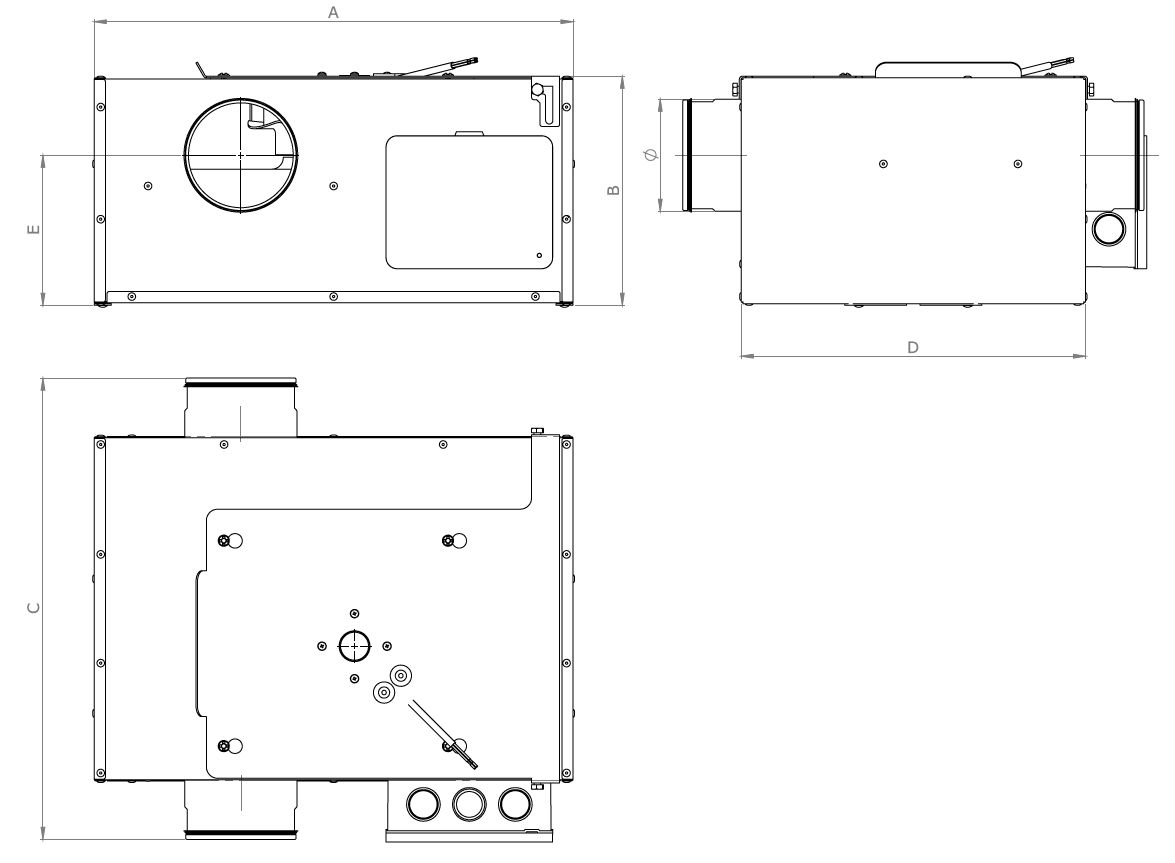

Vortice CA INLINE Quiet inline fan range dimensions

Dimensions in mm	A	B	C	D	E	Ø
CA IL 100 Quiet	427	203	411.5	307	134	100
CA IL 125 Quiet	427	203	411.5	307	120.5	125
CA IL 150 Quiet / CA IL 150 Quiet Q	442	238	412	307	143	150
CA IL 160 Quiet / CA IL 160 Quiet Q	490	238	467	362	138	160
CA IL 200 Quiet	490	278	468.5	372	158	200

Optional accessories are available in our shop.

Features

Brand
VORTICE
Colour
White
Shape
Round
Material
Steel
Integrated non-return valve
Yes
