Chain Block and Push Trolley Combination 1T 6M (Beam Girder Tackle Manual)

Product out of stock

Product information

Description

General description

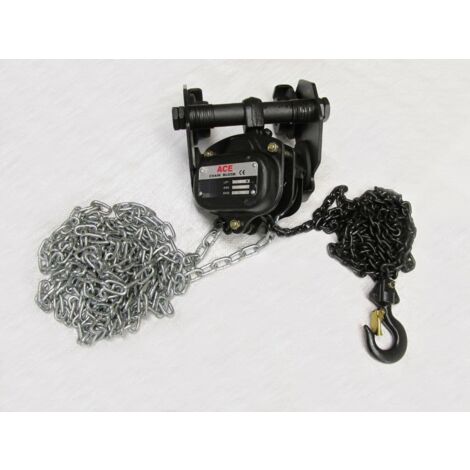

Combination Chain Block & Push Trolley is an excellent all-in-one product designed for ease and convenience in lifting applications. The push trolley attaches to steel beams, providing an adjustable lifting point for the chain block, which is manufactured with a chain guide for smooth operation and steel construction for durability.

Technical specifications

Safe Working Load: 1 Ton (1000 KGS)

Lift Height: 6 Metres

Hand Chain Effective Working Length: 5.7 M

Chain Falls: 1

Load Chain Diameter: 6 MM

Trolley Dimensions: 235 MM (Length) x 248 MM (Width)

Overall Height: 300 MM

Recommended Beam Size: 80 MM - 146 MM

Other information

Conforms to: BS EN 13157: 2004+A1: 2009

Safety hooks are drop forged and heat treated for safety and durability.

Supplied with a test certificate (sent via email).

Please note that the color may vary; contact us if a black finish is required.

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Maximum load
1000 kg
Cable diameter
6 mm
Supplied with hauling pulley
Yes

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
