Chain Block and Push Trolley Combination 2T 10M (Beam Girder Tackle Manual)

Name: Chain Block and Push Trolley Combination 2T 10M (Beam Girder Tackle Manual)
Brand: SECUREFIX DIRECT
SKU: SFCCBPT210
Availability: OutOfStock

Product out of stock

Product information

Description

General description

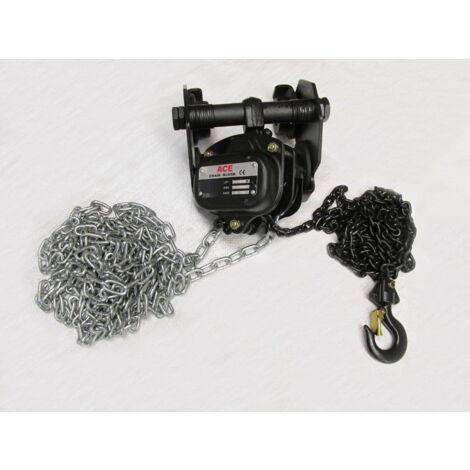

Combination Chain Block & Push Trolley is an excellent all-in-one product designed for ease and convenience in lifting applications. The push trolley attaches to steel beams, providing an adjustable lifting point for the chain block. The chain block features a chain guide for smooth operation and is constructed from durable steel for easy use and transport. Safety hooks are drop forged and heat treated to ensure safety and durability.

Technical specifications

Safe Working Load: 2 Ton (2000 KGS)

Lift Height: 10 Metres

Hand Chain EWL: 9.7 M

Chain Falls: 2

Load Chain Diameter: 6 MM

Trolley Dimensions: 270 MM x 285 MM

Overall Height: 300 MM

Recommended Beam Size: 80 MM - 168 MM

Other information

Conforms to: BS EN 13157: 2004+A1: 2009

Supplied with Test Certificate (sent via email)

Please note: Colour can vary; contact us for a black finish

Product Code: SFCCBPT210

Features

Brand
SECUREFIX DIRECT
NF certification
NF285
Warranty
1 year(s)
Maximum load
2000 kg
Cable diameter
6 mm

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
