Chain Block and Push Trolley Combination 2T 6M (Beam Girder Tackle Manual)

Name: Chain Block and Push Trolley Combination 2T 6M (Beam Girder Tackle Manual)
Brand: SECUREFIX DIRECT
SKU: SFCCBPT26
Price: 179.94 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

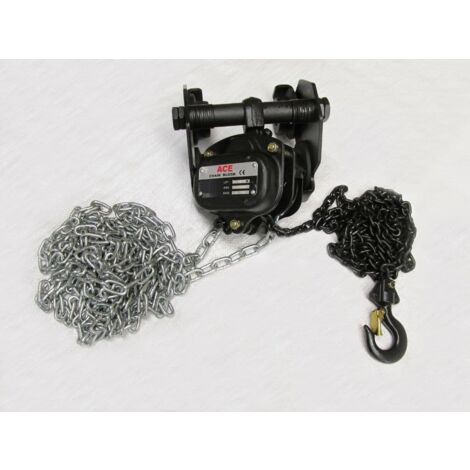

Combination Chain Block & Push Trolley is an all-in-one lifting solution designed for ease and convenience. This product features a push trolley that attaches to steel beams, providing an adjustable lifting point for the chain block. The chain block is equipped with a chain guide for smooth operation and is constructed from durable steel for easy transport and use.

Technical specifications

Safe Working Load: 2 Ton (2000 KGS)

Lift Height: 6 Metres

Hand Chain EWL: 5.7 M

Chain Falls: 2

Load Chain Diameter: 6 MM

Trolley Dimensions: 270 MM (Length) x 285 MM (Width)

Overall Height: 300 MM

Recommended Beam Size: 80 MM - 168 MM

Other information

Conforms to: BS EN 13157: 2004+A1: 2009

Supplied with Test Certificate (sent via email)

Safety hooks are drop forged and heat treated for durability

Please note: Color may vary; contact for specific color requests

Features

Brand
SECUREFIX DIRECT
Maximum load
2000 kg
Cable diameter
6 mm
Supplied with hauling pulley
Yes
Height
30 cm

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
