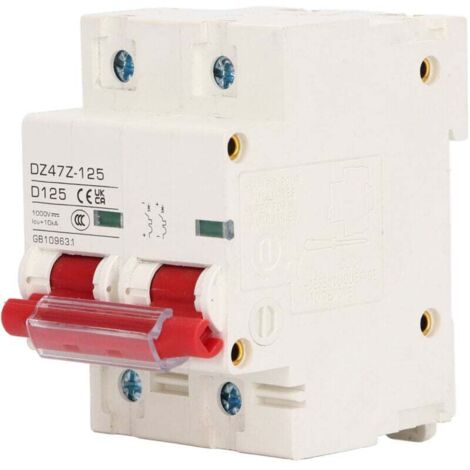

Circuit breaker, Miniature DC 1000V 125A Short-circuit protection circuit breaker for PV systems (Red) Bipolar circuit breaker
Of which environmental contribution £0.10 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
1. Main Function: This circuit breaker is used to protect power distribution installations from overloads and short circuits, and can also be used for control and isolation.
2. Fast Tripping: The electromagnetic tripping system of this circuit breaker can trip immediately in the event of a short circuit to protect circuit safety.
3. Arc Extinction: Extinctioning a DC arc is more difficult than extinguishing an AC arc. The DC circuit breaker has a magnetic system for auxiliary arc extinguishing.
4. Wide Application: This circuit breaker can be used for DC power systems, ship power systems, photovoltaic solar systems, or other DC systems.
5. DIN rail mounting: This circuit breaker features a modular design, screw clamp, and 35mm DIN rail mounting, allowing for quick installation.
Model: DZ47Z 125
Material: PA66
Rated Current: 125A
Rated Voltage: DC 1000V
Ultimate Short-Circuity (Industrial Icu): 10KA
Application: Solar Photovoltaic Electric Motorcycle, Electric Vehicle
Mechanical Life: 20,000 cycles
Applicable Temperature: -35°C to +70°C
2. Fast Tripping: The electromagnetic tripping system of this circuit breaker can trip immediately in the event of a short circuit to protect circuit safety.
3. Arc Extinction: Extinctioning a DC arc is more difficult than extinguishing an AC arc. The DC circuit breaker has a magnetic system for auxiliary arc extinguishing.
4. Wide Application: This circuit breaker can be used for DC power systems, ship power systems, photovoltaic solar systems, or other DC systems.
5. DIN rail mounting: This circuit breaker features a modular design, screw clamp, and 35mm DIN rail mounting, allowing for quick installation.
Specification:
Item Type: DC Circuit Breaker.Model: DZ47Z 125
Material: PA66
Rated Current: 125A
Rated Voltage: DC 1000V
Ultimate Short-Circuity (Industrial Icu): 10KA
Application: Solar Photovoltaic Electric Motorcycle, Electric Vehicle
Mechanical Life: 20,000 cycles
Applicable Temperature: -35°C to +70°C
Package List:
1 x DC Circuit BreakerFeatures
- BrandTEHTUY
- Amperage125 A
- Warranty1 year(s)
- Pcs per pack1
- Availability of spare parts1 year(s)
- Circuit breaker functionTwo pole
- Height10 mm
- MaterialPolyamide
- Type of electrical installationVisible
- Number of modules1
- Number of terminals2
- Voltage1 V
- Connection port typeAntenna
- ManoMano ReferenceME99039327
- MMID564714791856
- Product codeZJL-mano-08635
- EAN6282768159877
