Clevis Self Locking Hook Lifting 20MM Grade 8 with Grip Latch (G8 12.5 Ton Chain Sling Lift)

You may also like

Compare with similar items

Product information

Description

General description

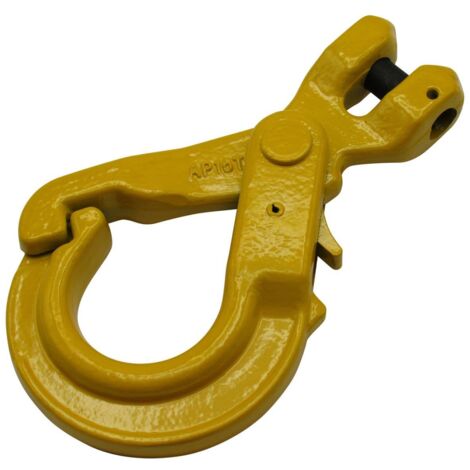

Clevis Self Locking Hook with Grip Latch is designed for lifting applications, specifically suited for 20MM chain sizes. Made from high-quality Grade 80 (G80) material, this hook features a self-locking mechanism that enhances safety during use. The latch closes automatically under load, ensuring secure lifting, while the spring release trigger remains inactive when the hook is under pressure.

Technical specifications

  • Material: Grade 80 (G80)
  • Finish: Yellow (may vary)
  • Factor of Safety: 4:1
  • Conforms to: BS EN 1677
  • Available Product Codes and Specifications:
  • SFYASCAH07: SWL 2 Ton, A 107 MM, B 22.5 MM, C 17 MM, D 34 MM, E 148 MM, F 9 MM, G 9 MM, H 9 MM
  • SFYASCAH10: SWL 3.15 Ton, A 135 MM, B 28 MM, C 23 MM, D 42.5 MM, E 186 MM, F 13 MM, G 13 MM, H 13.5 MM
  • SFYASCAH13: SWL 5.3 Ton, A 165 MM, B 32 MM, C 28 MM, D 49 MM, E 226 MM, F 15 MM, G 15.5 MM, H 16.5 MM
  • SFYASCAH16: SWL 8 Ton, A 23 MM, B 39 MM, C 34.5 MM, D 60 MM, E 267 MM, F 18.5 MM, G 20 MM, H 20.5 MM
  • SFYASCAH20: SWL 12.5 Ton, A 287 MM, B 57 MM, C 47 MM, D 78.5 MM, E 327 MM, F 25 MM, G 24 MM, H 23.5 MM
  • Other information

    *Test Certificate will be supplied via email.*

    Features

    • Brand
      SECUREFIX DIRECT
    • Colour
      Multicolour
    • Pcs per pack
      1
    • Material
      Two-material
    • Weight
      100 g
    • ManoMano Reference
      ME27139377
    • MMID
      409600016463
    • Product code
      SFYASCAH20
    • EAN
      0600988486218
