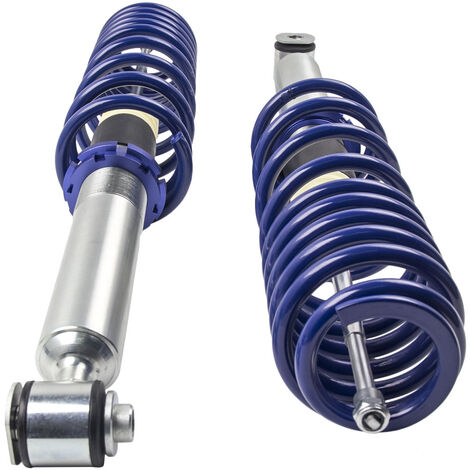

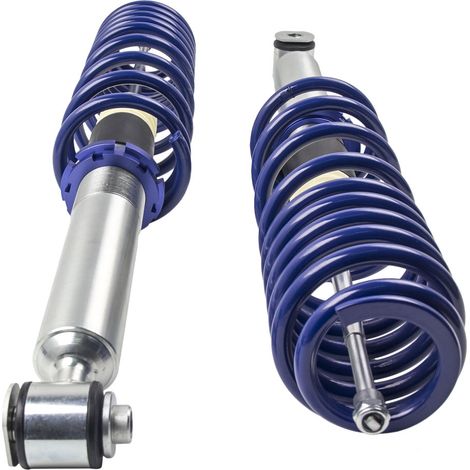

Coilover For Bmw 5 E39 1995-2003 520i,523i,525i,528i,530i 1995-2003 RWD
You may also like
Compare with similar items
Product information
Description
Notice:No Top Mount Included，Modification Required If You Use OE Top Mount
Applications
For BMW 5 E39 1995-2003 RWD notchback
Model: 520i,523i,525i,528i,530i,535i,540i,520d,525d,530d,525td,525tds
Note: Not for Wagon or M5 Models
Will not fit Self Leveling/Air suspension model
Front OE top mounts need to be modifed, add spacer on shaft
Specifications
Quantity: springs and shocks for front and rear, no top mounts included
Top mounts: Front and rear OE top mounts required
Damping: non-adjustable
Spring rate Front: 6 kg/mm (356 lbs/in)
Spring rate Rear: 2.5 kg/mm (140 lbs/in)
Spring length Front: 140mm
Spring length Rear: 355mm
Adjustable height: lowering 35mm-75mm
Coilover overall length Front: 380mm-530mm
Coilover overall length Rear: 455mm-655mm
Shock type: Twin tube
Spring Preload: No
Color: blue
Warranty: 2 years warranty for any manufacturing defect
Feature
* Twin-Tube structure allows sufficient stroke within the shock absorber.
* Height can be adjusted with coilovers installed on the vehicle.
* High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
* Height Adjustment tools included.
* Steel front shock bodies with special surface treatment to improve the durability.
Notice
- No Instruction Included; Professional installation & alignment suggested.
- Please check our store for other auto parts you may be interested in.
- Please feel free to contact us for whatever we can help via eBay message.
Features
- BrandMAXPEEDINGRODS
- MaterialAluminium
- Warranty2 year(s)
- NF certificationNF540
- Type of vehicleCar
