Description

General description

Concealed Door Hinge Jig Kit is designed for woodworking enthusiasts and furniture factories, allowing for precise drilling of cup-shaped holes for concealed cabinet door hinges. This kit is made from high-quality synthetic board, ensuring durability and accuracy in operation.

Technical specifications

Material: Synthetic board

Clamping Plate Thickness: Approx. 10 ~ 20mm / 0.39 ~ 0.79in

Boring Drill Bit Diameter: Approx. 35mm / 1.38in

Drilling Depth: Approx. 12 ~ 13mm / 0.47 ~ 0.51in

Compatibility and accessories

Compatible with drilling machines, bench drills, vertical drills, handheld electric drills, vertical electric drills, and mobile belt magnetic drills

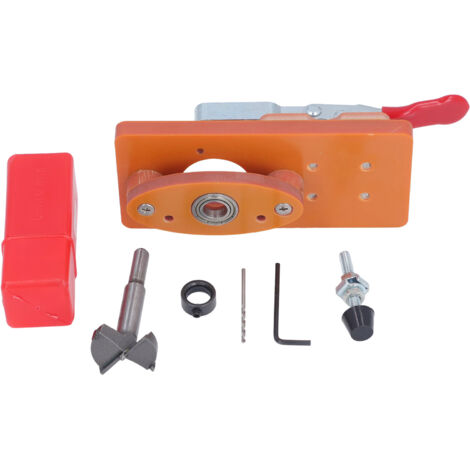

Includes: 1 x Woodworking Hinge Boring Jig, 1 x 35mm Boring Drill Bit, 1 x Quick Clamp, 1 x Depth Stop, 1 x Drill Bit, 1 x Wrench, 1 x Storage Box

Installation

Install the 35mm hole opener

Adjust the normal drilling depth to 12‑13mm

Lock the limit ring

Usage

Easy to use with any drill bit, no special tools required

Adjustable drilling guide for boards of different thicknesses

Features

Brand
GROOFOO
Pcs per pack
1
Compatible drill
Standard drill
Type of drill accessory
Jig
ManoMano Reference
ME93833992
MMID
939423126447
Product code
AAAGFUK-1887
EAN
9375777063574
