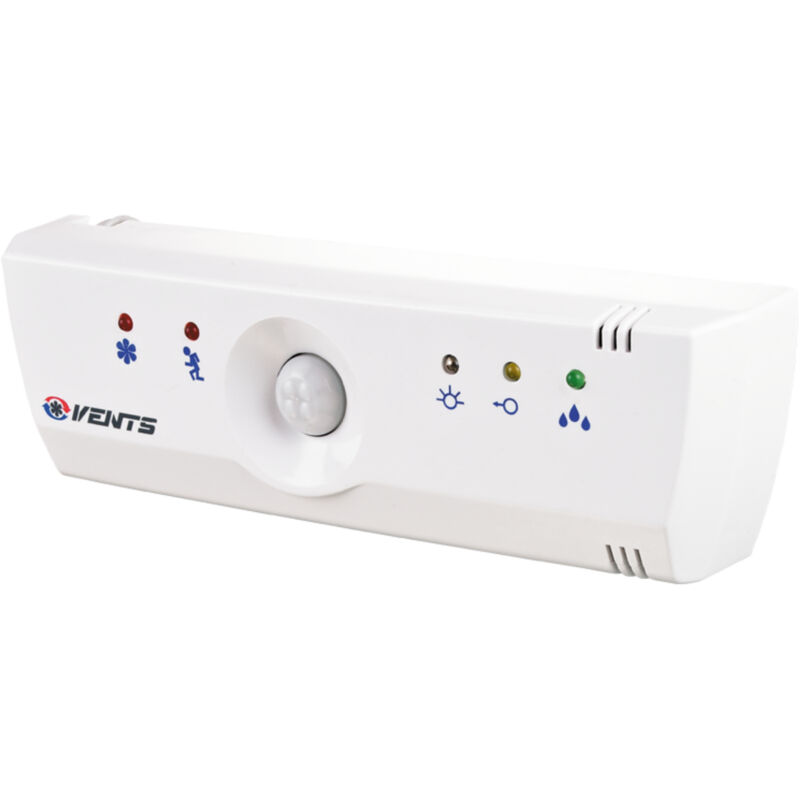

Controller for Exhaust Fans BU-1-60

Name: Controller for Exhaust Fans BU-1-60
Brand: VENTS
SKU: BU-1-60
Price: 69.65 GBP
Availability: InStock
Rating: 5 (1 reviews)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by creoven

Product information

Description

General description

The Controller for Exhaust Fans BU-1-60 is a versatile device designed to optimize the operation of exhaust fans. It features multiple operating modes, allowing for tailored control based on environmental conditions and user preferences.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Max. power load: 60 W

Max. current load: 0.3 A

Housing colour: white

Housing material: ABS

Max. ambient temperature: 40°C

IP rating: IP34

Dimensions: 151 x 46 x 27 mm

Mounting options: wall

Operating modes

Shut-off timer: Adjustable run-on time (5 sec - 30 min) after the fan is switched off

Interval: Adjustable interval timer (5 sec - 30 min) for cyclic operation of the fan

Humidity sensor: Adjustable threshold value (40-100% RH) for switching on the fan, with adjustable run-on time (5 sec - 30 min)

Motion sensor: Automatic switch-on when movement is detected within a range of 1-4 m and angles up to 100°, switch-off after an adjustable run-on time (5 sec - 30 min)

Night mode: Adjustable sensitivity of the light sensor for automatic switching on of the fan after switching off the light, with adjustable run-on time (5 sec - 30 min)

Day mode: Adjustable sensitivity of the light sensor for automatic switching on of the fan after switching on the light, with fan switching off after an adjustable run-on time (5 sec - 30 min) once the light is switched off; max. running time with lights on 60 min

Features

Brand
VENTS
Pcs per pack
1
Colour
White
Height
2.7 cm
IP rating
IP34
Width
4.6 cm
Material
Plastic
Weight
120 g
ManoMano Reference
ME89196700
MMID
840323077564
Product code
BU-1-60
EAN
4823059330548

Customer reviews

5,0

/ 1 Reviews

Reviews verified by ManoMano

HHerve

Published on 07/08/2025, France

I just regret that you have to choose between the functions...you can't combine several functions.
