Stanley Cubix Cross-Line Green Laser Level with Auto-Alignment, 16 M Range (Model STHT-77499-1)

Name: Stanley Cubix Cross-Line Green Laser Level with Auto-Alignment, 16 M Range (Model STHT-77499-1)
Brand: STANLEY
SKU: 3561774997
Price: 119.09 GBP
Availability: InStock
Rating: 4.23 (22 reviews)

Sold by GravaHaus and 5 other sellers

Product information

Description

General description

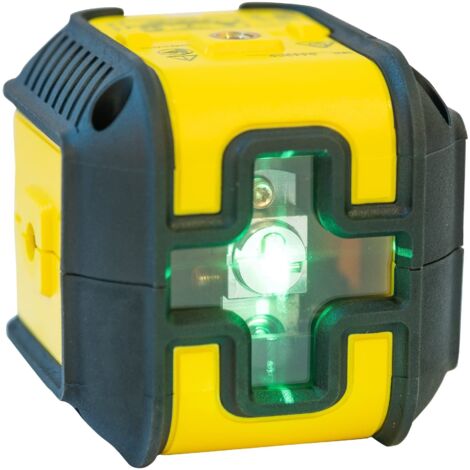

The Stanley Intelli Tools Cubix™ Cross Line Laser Level is designed for indoor use, making it ideal for DIY projects and light residential construction tasks such as leveling chair rails and hanging cabinets. It projects bright green vertical and horizontal lines onto flat surfaces, allowing users to easily level their installations. The device is protected by a durable, overmoulded housing and features a locking pendulum for safe transportation.

Technical specifications

Level Accuracy: ±0.6mm/m

Working Range: 16m

Power: 2 x AA batteries (included)

Thread: 1/4in

Laser Class: 2

Laser Color: Green

Protection Rating: IP54

Weight: approximately 800 grams

Leveling Range: +/- 4°

Projection: 2 lines (horizontal and vertical)

Compatibility and accessories

Compatible with standard 1/4" tripods and supports

Includes a carrying case with belt clip for easy transport

Supplied with: 1 x Protective Pouch, 1 x Removable QuickLink™ Bracket, 2 x AA Batteries, 1 x Quick Start Guide

Installation

Mount the device on a tripod or support with a 1/4" screw thread for stable positioning

Ensure the device is placed on a flat surface or mounted at the desired height

Activate the laser and allow it to auto-level within the +/- 4° range

Usage

Use the horizontal and vertical laser lines to mark level and plumb references on walls or surfaces

Ideal for aligning furniture, hanging pictures, or painting lines

Lock the pendulum for safe transportation and storage

Other information

Designed for indoor use only

Laser beam is visible in well-lit conditions due to green color

Ensure batteries are replaced when operation time decreases

Stanley Cubix Cross Line Laser Level (Green Beam)

Features

Brand
STANLEY
Length
10 cm
Range
16 m
Number of laser lines
2
Origin
Made in China
Beam colour
Green
Self-levelling (feature)
Yes
Battery or cell included
Yes
Laser class
2
Light colour
Green
Availability of spare parts
0 year(s)
Laser shape
Cross
Height
145 mm
Width
100 mm
Material
Plastic
Parallel leveling (360°)
Yes
Weight
600 g
Projection type
Cross
ManoMano Reference
ME6707808
MMID
411914412766
Product code
3561774997
EAN
3253561774997
