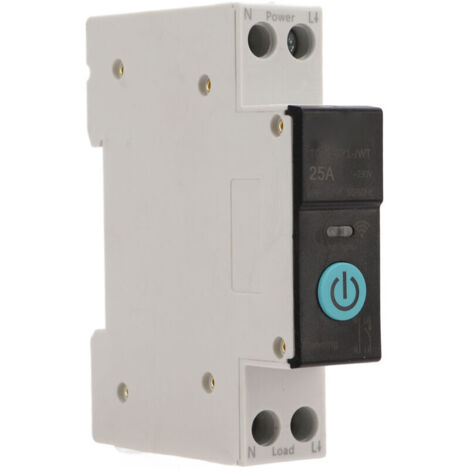

DIN rail circuit breaker, smart WIFI switch, mobile phone remote control, 3 synchronization modes, for household appliances, 25A

~~£63.52~~

Of which environmental contribution £0.01 including VAT.

Sold by Sinocor GmbH

Product information

Description

General Description

The DIN rail circuit breaker is a smart WiFi switch that allows you to remotely control your household appliances. With its three synchronization modes, it simplifies the management of your electrical equipment, allowing you to turn it on or off as needed. Made of copper and PA66, this circuit breaker is designed to offer excellent conductivity and resistance to high temperatures, ensuring safe operation.

Technical Specifications

Item Type: DIN Rail Circuit Breaker
Material: Copper, PA66
Rated Operating Voltage: 230V AC
Number of Poles: 1P+N (N through pole)
Control Method: for SigMesh/for ZigBee
Rail: DIN35
Size: Approx. 82 x 68 x 18 mm (3.23 x 2.68 x 0.71 in)

Compatibility and Accessories

Application: Smart Home Control
Compatible with Tuya Smart

Installation

Connect the wire from the top end of the circuit breaker to the bottom end, ensuring the wiring is correct and the WiFi signal is strong.
Turn on Bluetooth and WiFi on your phone, open the app, then press and hold the "Power" button for about 5 to 10 seconds; the LED indicator will flash slowly in blue.
Once the LED indicator is flashing, a pop-up window will appear. Click the "+" in the upper right corner, then select "Add a device" and wait for the device to be recognized.
Enter the Wi-Fi account password and click Next to connect to the network.

Usage

The LED indicator displays a solid blue light when the switch is on.
The LED indicator is off when the switch is off or in offline mode.
The LED indicator flashes slowly in blue to indicate that the product is in pairing mode.
