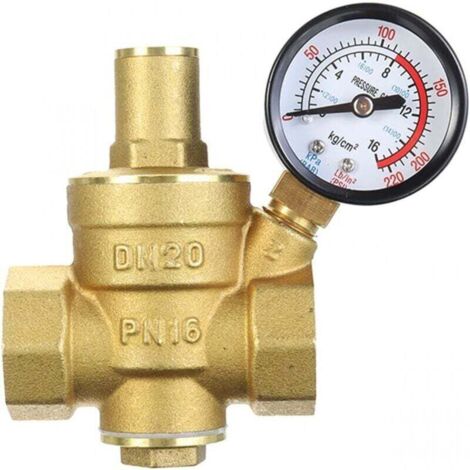

DN20 Adjustable brass water pressure reducer with pressure gauge, adjustable brass water pressure reducer (DN20)
You may also like
![[NEVER USED] DN20 Brass water pressure reducer with adjustable pressure reducing valve pressure gauge](https://cdn.manomano.com/pim-media/images/medium/f84134a2e7d7770a4a89b3ae0cb184786421fb5e.jpg)
Compare with similar items
Product information
Description
Technical Specifications:
Material: Brass.
Maximum Load: 16 kg/cm².
Maximum Residual Current: 0.05 – 0.8 MPa (7.25 – 116 psi).
Connector Size: DN20
Inlet Pressure: 1.6 MPa (Max) / 232 PSI.
Weight: 425 g.
Package Contents:
1 pressure gauge.
1 brass water pressure reducing valve.
Note: The direction of water flow from the valve body installation must strictly match the direction marked on the valve. If the direction is incorrect, the water pressure gauge will not function.
After installation, adjust the valve to an appropriate pressure range to prevent excessive pressure from damaging the pressure gauge, or the pressure gauge from malfunctioning if the pressure is too low. Installing a water pressure reducing valve is the only way to solve this problem. If the water pressure is too high, the electric water heater is making abnormal noises, the safety valve is ticking, and there is a sound of water loss. If the water pressure is too high (0.3 MPa), the water purifier is working. Water pipes often burst, and water overflows in Jinshan. 6 Main Advantages: Filter Design/Clogging Prevention: The water inlet is equipped with a stainless steel filter that can filter particles in the water to protect the valve body from damage and extend its lifespan. Thickened/clear wire.The main body features a forged wire interface design/thickened in a single pass/easy installation and no water loss.
Adjustable design/pressure
Various pressure values can be set/a wide range of applications.
Valve body indicator/installation direction.
The pressure reducer can be installed horizontally or vertically. The flow direction must be the same as that indicated on the valve.
Manual pressure adjustment method.
Using the hexagonal pressure adjustment key, the pressure can be adjusted according to the actual water pressure.
You can directly turn the protective cover on the top of the pressure reducing valve counterclockwise to remove it by hand, insert a hexagonal key into the top hole to adjust the water pressure: 0.05 - 0.8 MPa (7.25 - 116 psi) - Suction pressure: 1.6 MPa (maximum) / 232 PSI.
Turn counterclockwise to decrease the water pressure.
Turn clockwise to increase the water pressure.
Pressure gauge installation method.
The pressure reducing valve is equipped with a pressure gauge interface. By installing a pressure gauge, the real-time pressure can be intuitively displayed.
The pressure gauge can be installed and connected to the outlet of the pressure reducer.
First, use an adjustable wrench to remove the cap on the pressure gauge interface, then install it.
During installation, the interface is already equipped with a sealing gasket; there is no need to directly screw the strap onto the raw material for installation.
Features
- BrandTEHTUY
- Warranty1 year(s)
- Pcs per pack1
- Connection configurationF-M-F
- Pipe thread size1/4" (8x13)
- Height10 mm
- MaterialBrass
- Weight425 g
- Input pressure16 bar
- Pressure10 bar
- AdjustableYes
- Pressure regulation typePressure reduction
- ManoMano ReferenceME98870365
- MMID318043384763
- Product codeZJL-mano-03066
- EAN6282768104181
