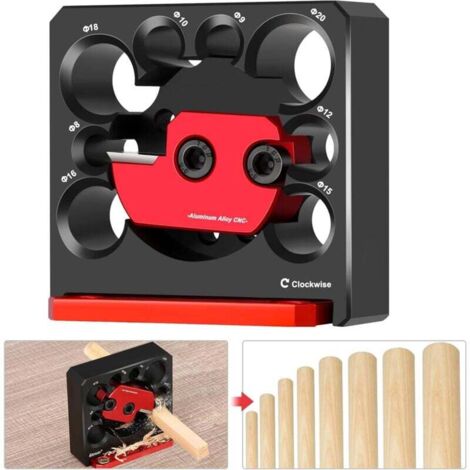

Dowel drilling jig set (8–20 mm) with carbide blade. Suitable for electric drills, dowel cutters, round rods, and as an aid for dowels and wooden rods. Woodworking.

[High-quality material] This dowel plate is made of high-quality aluminum alloy, making it sturdy and durable. The anodized finish is rust-resistant and ensures long-lasting durability. [8-hole design] This dowel drill features 8 holes with different diameters: 8mm, 9mm, 10mm, 12mm, 15mm, 16mm, 18mm, and 20mm to meet your different work needs. [Convenient] Our electric wave dowel drill uses carbide blades, allowing you to easily and quickly create dowels and studs, significantly increasing efficiency. [Easy operation] Loosen the screw, rotate the red blade holder to the desired diameter, and retighten the screw to start drilling. The included blades can be used in various positions for greater convenience. Package includes: 1 high-speed carbide dowel drill, 1 blade wrench, 1 adjustment wrench, and 3 adjustment screws.



Scope of delivery



• 1x Threaded drilling jig
• 1x Open-end wrench
• 1x Adjusting key
• 3x Mounting screws

 Specifications



• Item Type: Dowel Maker Template
• Material: Aluminum Alloy
• Color: Black and Red
• Round Hole Size: Diameter 8mm/0.31in, Diameter 9mm/0.35in, Diameter 10mm/0.39in, Diameter 12mm/0.47in, Diameter 10mm/0.39in, Diameter 15mm/0.59in, Diameter 16mm/0.63in, Diameter 18mm/0.71in, Diameter 20mm/0.79in
• Surface Finish: Anodized
• Blade Material: Carbide Blade



Sharp alloy blades are featured on all four sides, with one side beveled and the other replaceable. This extends its life by four times.	Easy to assemble, mounting screws included.	Slight variations in the dimensions of the rod are possible; you will receive exactly what is pictured.



Prepare wooden blocks of the appropriate thickness.	Cut one end of the wooden block evenly so that it fits the drill. Make sure the cut edge is as rounded as possible. Place the cut wooden block on the drill and clamp it firmly. Align the wooden block with the desired size of the round hole, turn on the drill, slowly push it forward and drill the round hole.
