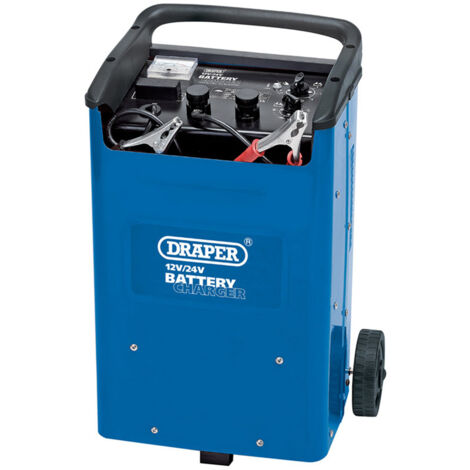

Draper 12/24V 360A Battery Starter and Charger with Trolley (Model 11967)

Name: Draper 12/24V 360A Battery Starter and Charger with Trolley (Model 11967)
Brand: DRAPER
SKU: 11967
Price: 235.73 GBP
Availability: InStock

Sold by GravaHaus and 2 other sellers

Product information

Description

General description

This is a versatile battery starter and charger designed for garage and workshop use. It features easy mobility with trolley wheels and includes safety and convenience features such as thermal overload protection, a battery timer, an easy-to-read ammeter, polarity inversion protection, and a transport handle. The device is equipped with insulated copper leads for safe and efficient operation.

Technical specifications

Charging voltage: 12V / 24V

Input power: 230V, 16A single phase

Effective charging current: 75A (RMS)

Average charging current: 50A (EN60335)

Effective cranking current: 360A (RMS)

Average cranking current: 280A (EN60335)

Dimensions: 350 x 260 x 615 mm

Weight: 23 kg

Compatibility and accessories

Compatible with 12V and 24V batteries

Includes insulated copper leads for connection

Installation

Place the unit on a stable, flat surface in a well-ventilated area

Connect the insulated copper leads to the appropriate battery terminals, ensuring correct polarity

Ensure the device is properly grounded and connected to a power source

Usage

Use the device to start or charge vehicle batteries within its specified voltage range

Monitor the ammeter to check charging or cranking status

Use the battery timer to control charging duration

Follow safety instructions to prevent electrical hazards

Features

Brand
DRAPER
NF certification
NF230
Warranty
1 year(s)
Starting function (boost)
Yes
Height
61.5 cm
