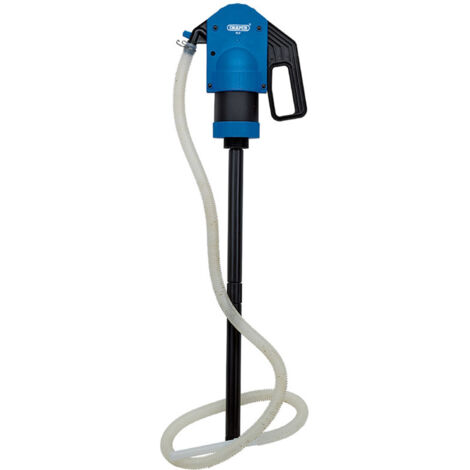

Draper Plastic Lever Pump Model 13381 for Efficient Fluid Dispensing

Sold by GravaHaus and 2 other sellers

You may also like

Compare with similar items

Product information

Description

General description

This plastic lever pump is designed for efficiently transferring non-aggressive liquids such as AdBlue®, detergents, soaps, anti-freeze, windscreen wash, hydraulic oils, lubricants, herbicides, and pesticides. It features a durable construction with Viton® seals and an anti-siphon valve to prevent backflow, delivering a maximum flow of 500ml per stroke. The pump is suitable for use with barrels and drums ranging from 50 to 205 liters.

Technical specifications

  • Maximum flow rate: 500ml per stroke
  • Material: Plastic with Viton® seals
  • Includes anti-siphon valve
  • Supplied with a two-piece detachable suction tube for barrels from 50L to 205L
  • Flexible corrugated discharge hose: 2 meters long, 19mm diameter
  • Includes a 50mm screw bung for barrel attachment
  • Installation

  • Attach the screw bung to the barrel opening
  • Connect the detachable suction tube to the pump
  • Insert the suction tube into the liquid
  • Connect the discharge hose to the pump outlet
  • Ensure all connections are secure before operation
  • Usage

  • Operate the lever to draw liquid from the barrel
  • Pump delivers approximately 500ml per stroke
  • Use the flexible hose to direct the liquid where needed
  • Clean the pump after use to maintain performance
  • Other information

  • Not suitable for transferring fuels, thinners, solvents, or flammable liquids
  • Packed in a polythene bag with label
  • Features

    • Brand
      DRAPER
    • Weight
      1.4 kg
    • Material
      Plastic
    • power supply
      Manual
    • Warranty
      1 year(s)
