Draper 1L Pneumatic Brake and Clutch Fluid Extractor for Brake Bleeding – Suitable for Cars, Vans, and Trucks (Model 22113)

Name: Draper 1L Pneumatic Brake and Clutch Fluid Extractor for Brake Bleeding – Suitable for Cars, Vans, and Trucks (Model 22113)
Brand: DRAPER
SKU: 5059482044304
Price: 21.62 GBP
Availability: InStock

Sold by GravaHaus and 1 other seller

Product information

Description

General description

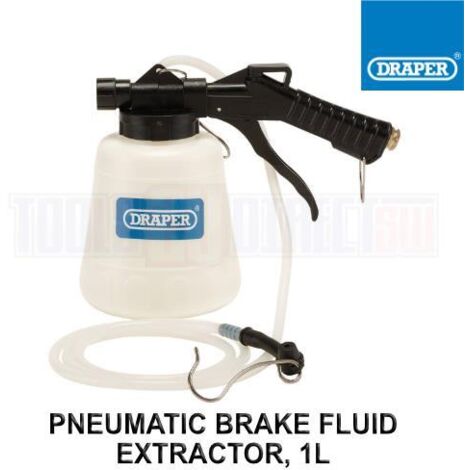

This pneumatic brake fluid extractor is designed for bleeding or replacing brake fluid in cars, vans, trucks, and motorbikes. It offers a quick, clean, and efficient operation with a simple, one-person process. The device draws fluid from the bleed nipple without needing specialized brake reservoir caps and features a translucent hose for monitoring air in the system.

Technical specifications

Reservoir capacity: 1L

Air inlet size: 1/4 BSP

Air supply pressure: 90-120psi

Average air consumption: 180L/min

Maximum air supply: 120psi

Hose length: 1.8m

Compatibility and accessories

Compatible with cars, vans, trucks, and motorbikes

Supplied with a spare component kit including a nipple connector, joining tube, and gasket

Installation

Connect the extractor to a standard workshop air supply

Attach the appropriate nipple connector to the bleed nipple of the brake system

Usage

Ensure the system is depressurized before use

Connect the extractor to the bleed nipple using the supplied connector

Activate the trigger to draw brake fluid from the system

Monitor the fluid flow through the translucent hose

Repeat as necessary until the brake fluid is replaced

Other information

Includes a lockable trigger for safety and control

Features

Brand
DRAPER
Height
10 cm
Width
1 cm
Length
180 cm
Weight
475 g
ManoMano Reference
ME82347184
MMID
374576082987
Product code
5059482044304
EAN
5059482044304

Visit the DRAPER store

Draper was was started in 1919 when the founder, Bert Draper, made the purchase of the original warehouse. Today the Draper brand is known around the world for its core range of quality tools.
