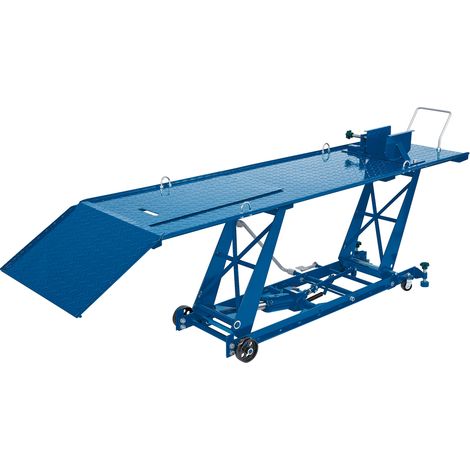

Draper Hydraulic Motorcycle Lift with 360kg (37058) Capacity for Easy Maintenance and Repair

Name: Draper Hydraulic Motorcycle Lift with 360kg (37058) Capacity for Easy Maintenance and Repair
Brand: DRAPER
SKU: MCL1
Price: 722.29 GBP
Availability: InStock

Sold by BuyaParcel and 2 other sellers

Product information

Description

General description

This heavy-duty hydraulic motorcycle lift is constructed from all steel, ensuring durability and stability. It features a foot-operated hydraulic pump and ram assembly for easy lifting, making it ideal for maintenance and repair tasks. The lift is designed to facilitate rear wheel changes with a removable rear panel and includes safety features such as a lock device to prevent accidental lowering and a stippled table surface for enhanced grip during loading. The base is equipped with transport wheels and lock downs to maintain stability during use, and it is supplied in a wooden crate for protection during transport.

Technical specifications

Capacity: 360kg (800lbs)

Lifting range: 180-680mm

Lowest working height: 420mm

Maximum working height: 610mm

Closed height: 180mm

Working table dimensions: 1900 x 530mm

Loading ramp dimensions: 420 x 530mm

Rear wheel removal panel: 660 x 215mm

Weight: 104kg

Compatibility and accessories

Compatible with most motorcycles requiring a lifting capacity of up to 360kg

Includes adjustable front wheel clamp and wheel stop bar

Removable rear panel for rear wheel access

Installation

Place the lift on a flat, stable surface

Use the transport wheels to position the lift as needed and lock them in place

Ensure the safety lock device is engaged before use

Usage

Operate the foot pedal to raise or lower the lift

Use the adjustable front wheel clamp and wheel stop bar to secure the motorcycle

Utilize the removable rear panel for rear wheel maintenance or removal

Other information

Manufactured to EN1494 safety standards.

Features

Brand
DRAPER
Maximum load
360 kg
Material
Steel
Operating Mode
Electric
Weight
104 kg

Visit the DRAPER store

Draper was was started in 1919 when the founder, Bert Draper, made the purchase of the original warehouse. Today the Draper brand is known around the world for its core range of quality tools.
