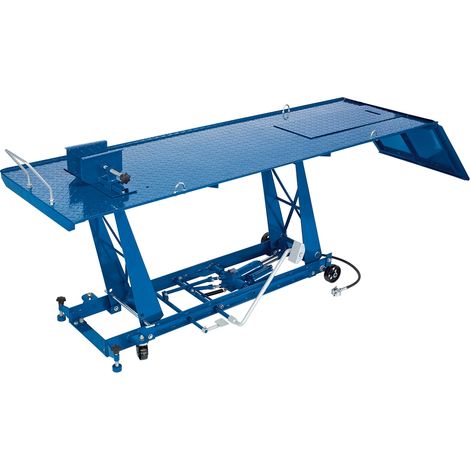

Draper 450kg Pneumatic/Hydraulic Motorcycle Lift (Model 37188) – Heavy-Duty Motorcycle Maintenance and Repair Lift

Description

• This is a heavy-duty motorcycle lift made entirely of steel, designed for professional and DIY use. It operates using either a foot-operated hydraulic pump or a pneumatic pump system, providing reliable lifting power. The lift features a stippled surface for safety and grip during loading and unloading motorcycles. It includes safety features such as a lock device to prevent accidental lowering and an adjustable front wheel clamp with a wheel stop bar. The rear panel is removable to facilitate rear wheel changes. The base is equipped with transport wheels and lock downs to keep the lift stable during use. The lift is supplied in a wooden crate for protection during transport.

Specifications

• Capacity: 450kg (1000lbs)
• Operating air pressure: 90psi (6.2bar)
• Air inlet: 1/4" BSP
• Lifting range: 180-815mm
• Working height 1: 540mm
• Working height 2: 730mm
• Maximum height: 815mm
• Closed height: 180mm
• Table size: 2200 x 680mm
• Loading ramp size: 600 x 550mm
• Rear wheel removal panel size: 690 x 245mm
• Weight: 141kg

Compatibility and Accessories

• Compatible with motorcycles up to 450kg
• Includes a loading ramp and rear wheel removal panel for easy maintenance

Installation

• Place the lift on a flat, stable surface
• Ensure the transport wheels are locked during operation
• Connect to an air supply with 90psi pressure for pneumatic operation

Usage

• Operate the hydraulic or pneumatic pump to lift the motorcycle to the desired height
• Use the safety lock to secure the lift during maintenance or repairs
• Adjust the front wheel clamp as needed to stabilize the motorcycle
• Remove the rear panel if rear wheel access is required

Other Information

• Supplied in a
