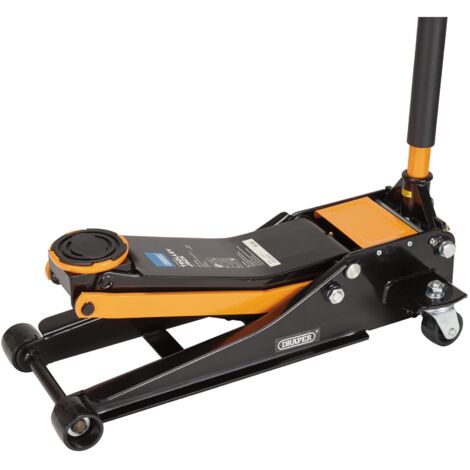

Draper 3-Tonne Orange Trolley Jack with 75-505mm Lift Range, 738mm Chassis Length, Model 28494

Description

• This low-profile trolley jack is designed for vehicle maintenance and home improvement tasks. It can lift loads from 75mm to 505mm in height and has a maximum capacity of 3 tonnes. The jack features a twin-piston quick lift system with eight pumps, allowing for efficient and rapid height adjustment. It is equipped with safety features such as a twin safety valve to prevent overloading and a twin spring return system for safe lowering when not under load. An integrated rubber saddle pad protects the underside of the vehicle during lifting, while an EVA foam handle cover prevents damage to panels. The knurled handgrip on the lifting arm ensures a secure grip during operation. The jack is mounted on durable nylon wheels with rear swiveling castors, providing smooth, quiet movement and floor protection.

Technical Specifications

• Capacity: 3 tonnes
• Minimum height: 75mm
• Maximum height: 505mm
• Saddle diameter: 110mm
• Handle length: 1,145mm
• Chassis length: 738mm
• Weight: 35kg

Compatibility and Accessories

• Suitable for most vehicles requiring lifting within the specified height range
• Includes rubber saddle pad and EVA foam handle cover for protection

Installation

• Place the jack on a flat, stable surface before use
• Ensure the saddle is properly positioned under the vehicle's lifting point
• Operate the pump handle to raise the vehicle to the desired height

Usage

• Use the knurled handgrip for a secure hold during lifting
• Operate the pump with controlled, steady pressure for safe lifting
• Lower the vehicle slowly using the safety valve and spring return system

Other Information

• Manufactured to EN 1494 safety standards
