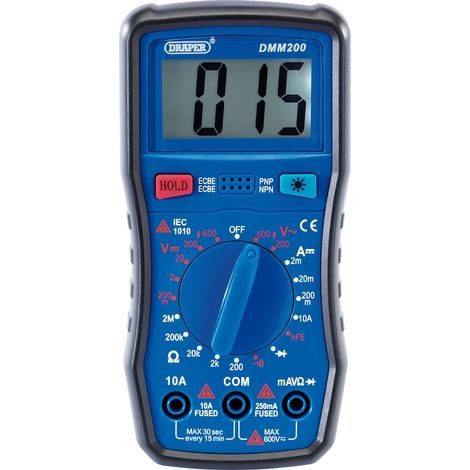

Draper Digital Multimeter Volt Multi Meter Voltage Tester 600v AC/DC 41817
Sold by First for DIY and 2 other sellers
You may also like
Compare with similar items
Product information
Description
FEATURES:
Manual ranging capable of voltage, current, hEF and resistance testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads.
SPECIFICATION:
AC Current: N/A
AC Voltage: 200V/600V
Automatic Power Off: Yes
Capacitance: N/A
DC Amps: 2mA/20mA/200mA/10A
DC Current: 2mA/20mA/200mA/10A
DC Voltage: 200mV/2V/20V/200V/600V
Diode on/off Test: Yes
Dimensions: 150mm x 74mm x 43mm
Duty Ratio: Yes
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: -20°C - 1000°C
Weight: 233g (approx.)
Battery Type: 1 x PP3 9V (not supplied)
Manual ranging capable of voltage, current, hEF and resistance testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads.
SPECIFICATION:
AC Current: N/A
AC Voltage: 200V/600V
Automatic Power Off: Yes
Capacitance: N/A
DC Amps: 2mA/20mA/200mA/10A
DC Current: 2mA/20mA/200mA/10A
DC Voltage: 200mV/2V/20V/200V/600V
Diode on/off Test: Yes
Dimensions: 150mm x 74mm x 43mm
Duty Ratio: Yes
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: -20°C - 1000°C
Weight: 233g (approx.)
Battery Type: 1 x PP3 9V (not supplied)
Features
- BrandDRAPER
- Battery or cell includedYes
- Measured function(s)Resistance
- MaterialPlastic
- Display modeDigital
- BacklightingYes
- Voltage9 V
- ManoMano ReferenceME6134080
- MMID169733291989
- Product codeDMM200
- EAN5051395282149
Advice from
Multimeter buying guide
A multimeter is an essential tool used to measure various electrical values. From digital multimeters with screens to analogue models with needle scales, multimeters all look alike so it can be tricky to choose the right device. Read on for our best safety practices and tips to help you find the best multimeter!
'/%3E%3C/svg%3E)
Visit the DRAPER storeDraper was was started in 1919 when the founder, Bert Draper, made the purchase of the original warehouse. Today the Draper brand is known around the world for its core range of quality tools.
