Faithfull EM3081 Pocket Portable Multimeter – Compact Digital Multimeter for Electrical Testing and Measurement
Buying for your business?
Negotiated prices excl. VAT up to -20%
Sold by GravaHaus and 3 other sellers
You may also like
Compare with similar items
Product information
Description
Description

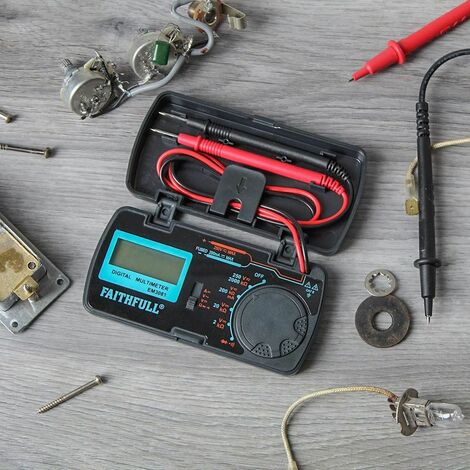

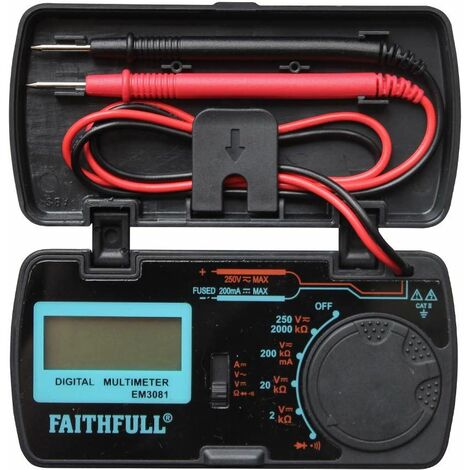

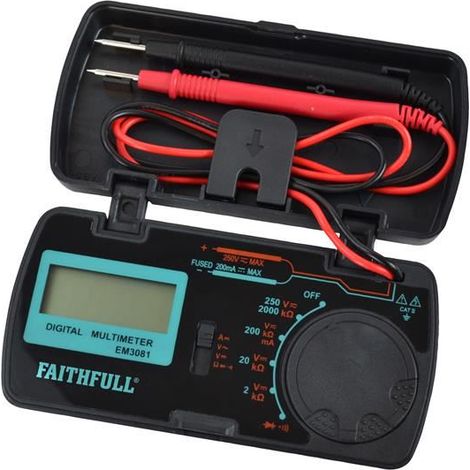

- The Faithfull Pocket Portable Multimeter is a compact, handheld device housed in a flip-open case. It is designed for quick and accurate testing in electronics, automotive, household appliances, and portable tools. It features a clear LCD display and offers multiple measurement functions, making it a versatile tool for various electrical checks.
Specifications
- AC Voltage: 200-250V
- DC Voltage: 2V/20V/200V/300V
- DC Current: 200mA
- Resistance: 2kΩ/20kΩ/200kΩ/2000kΩ
- Diode Check Voltage: approximately 2.5V
- Continuity Test: resistance less than 30Ω
- Category II 250V
- Power Supply: 2 x 1.5V LR44 batteries (included)
- Dimensions: 114 x 55 x 22mm
- Weight: approximately 100g (including batteries)
Compatibility and Accessories
- Compatible with standard test leads and probes for electrical testing
- Supplied with batteries, test leads, and user manual
Installation
- Insert the included batteries into the device as per the manual
- Connect appropriate test leads to the multimeter and the device under test
Usage
- Turn on the multimeter and select the desired measurement mode
- Connect the test leads to the circuit or component to be tested
- Read measurements directly from the LCD display
- Use the hold function and polarity indication as needed for convenience
Other Information
- Compact and lightweight, ideal for field and workshop use
- Easy to operate with simple controls
Features
- BrandFAITHFULL
- Battery or cell includedNo
- Measured function(s)Continuity
- Amperage200 mA
- Display modeDigital
- Voltage200 V
- ManoMano ReferenceME20958637
- MMID123354438781
- Product codeFAIDETPOCKET
- EAN5023969001210
