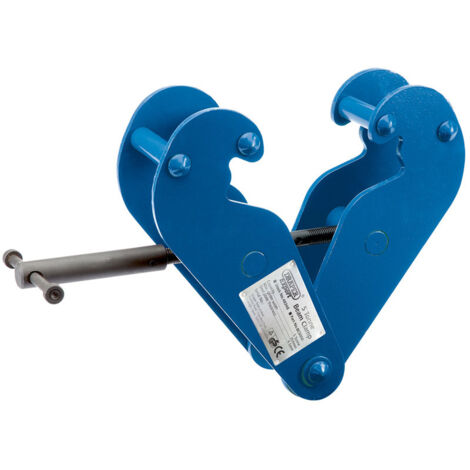

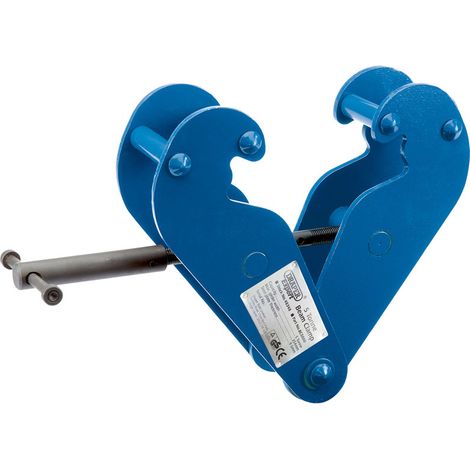

Draper 5-Tonne Heavy-Duty Beam Clamp Model 48348 for Secure Structural Support

Description

This high-quality steel lifting clamp is designed for semi-permanent attachment to steel RSJs, serving as a secure lifting point for chain blocks, hoists, and other lifting equipment. It can also be used for lifting and transferring steel beams and functions as a pulling clamp. The product is suitable for heavy-duty applications and ensures safety during lifting operations.

Specifications

• Safe Working Load (S.W.L.): 5 tonnes
• Girder beam width: 80-354mm
• Overall width (beam clamp): 235-490mm
• Depth (beam clamp): 110mm
• Steel plate thickness: 10mm

Compatibility and Accessories

• Compatible with steel RSJs and beams within specified dimensions
• Includes test certificate for safety and compliance

Installation

• Attach the clamp securely to the steel RSJ or beam within the specified width range
• Ensure the clamp is properly aligned and tightened before use

Usage

• Use as a lifting point for chain blocks, hoists, and lifting tackles
• Suitable for lifting, transferring, and pulling steel beams
• Always adhere to safety guidelines and load limits during operation
