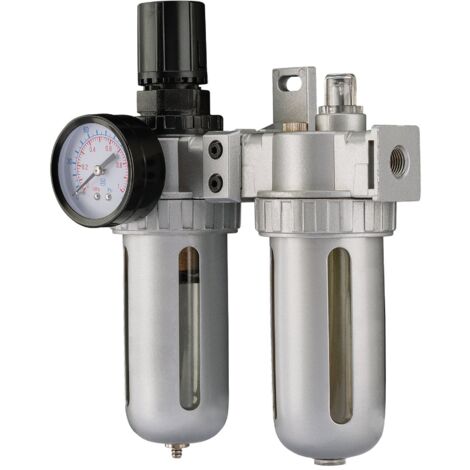

Draper 1/4" BSP Combined Filter, Regulator, and Lubricator Unit (Model 70824)

Name: Draper 1/4" BSP Combined Filter, Regulator, and Lubricator Unit (Model 70824)
Brand: DRAPER
SKU: DFRL
Price: 28.56 GBP
Availability: InStock

Sold by GravaHaus and 2 other sellers

Product information

Description

General description

This is a high-quality air regulator designed to control output air pressure, remove moisture and contaminants from airflow, and lubricate tools during operation. It features a durable aluminium body with a polished silver finish and a steel gauge for precise pressure measurement.

Technical specifications

Inlet/outlet thread: 1/4" BSP

Maximum inlet pressure: 145 psi

Working temperature range: 5-60°C

Filtration element: 40 microns

Dimensions: 214 x 170 x 97 mm

Weight: 0.98 kg

Compatibility and accessories

Compatible with standard pneumatic tools and air systems

Includes a steel gauge marked with psi and MPa for accurate pressure readings

Supplied with a wall bracket for easy installation

Installation

Install the regulator between the air supply and tools using the 1/4" BSP inlet and outlet threads

Mount the unit securely on a wall using the included bracket

Ensure proper sealing to prevent leaks

Usage

Adjust the pressure using the gauge to the desired level for your tools

Use the manual/semi-automatic drain to remove accumulated moisture and contaminants

Maintain the filtration element regularly for optimal performance

Other information

Constructed with durable materials suitable for industrial and workshop environments.

Features

Brand
DRAPER
Colour
Grey
Pipe thread size
1/4" (8x13)
Material
Aluminium
Weight
980 g
Compressor accessory type
Filter
ManoMano Reference
ME33845980
MMID
556399337708
Product code
DFRL
EAN
5010559708246
