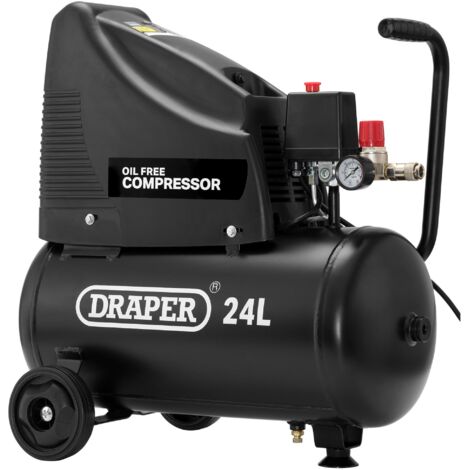

Draper 24L 230V Oil-Free Compressor and Air Tool Kit with 5-Piece Accessories, 116 PSI Pressure

Name: Draper 24L 230V Oil-Free Compressor and Air Tool Kit with 5-Piece Accessories, 116 PSI Pressure
Brand: DRAPER
SKU: 90126
Availability: OutOfStock

Product out of stock

Product information

Description

General description

This lightweight and portable oil-free air compressor is ideal for various tasks such as spraying, sanding, drilling, and cutting. It is easy to use and maintain, making it suitable for workshops or garages with limited space. The compressor comes with a range of accessories to support different applications, including spray guns, inflators, and blow guns.

Technical specifications

Tank Size: 24L

Motor Power: 1.1 kW (1.5 HP)

Air Displacement: 6.71 CFM (190 L/min)

Free Air Delivered (FAD): 3.53 CFM (100 L/min)

Speed: 2850 RPM

Piston Diameter: 50 mm

Piston Stroke: 23 mm

Maximum Pressure: 116 PSI (8 bar)

Sound Pressure Level: 92 dB(A)

Sound Power Level: 96 dB(A)

Weight: 21 kg

Dimensions: 570 x 250 x 570 mm

Compatibility and accessories

Includes a 230V oil-free compressor

Gravity feed spray gun

Paraffin/washing gun

Blow gun

Inflator with clip-on hose

Two 5-meter coiled air hoses with ¼" BSP female threaded connectors

Installation

Set up the compressor on a stable, flat surface in a well-ventilated area.

Connect the included hoses and tools as needed.

Ensure all connections are secure before operation.

Usage

Use the compressor for spraying, inflating, cleaning, or sanding tasks.

Adjust the pressure settings according to the specific tool or application.

Follow safety guidelines for operation and maintenance.

Features

Brand
DRAPER
Length
57 cm
Width
25 cm
Height
57 cm
Weight
21 kg
