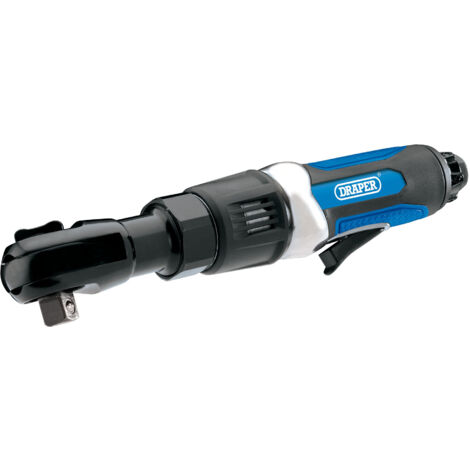

Draper 1/2" Drive Air Ratchet Wrench - Compact Stubby Yoke, 85Nm (60 ft/lb) Torque, Model 84122

Description

• This is a compact air ratchet with a stubby yoke, designed for ease of use in automotive and home improvement tasks. It features a lightweight aluminum housing and an ergonomic soft grip handle for comfortable operation during extended use. The tool is suitable for various repair jobs, including removing or replacing radiators, spark plugs, air conditioning components, and water pumps.

Technical Specifications

• Maximum torque: 85 Nm (60 ft/lb)
• Free speed: 160 rpm
• Operating air pressure: 90 psi (6.2 bar)
• Average air consumption: 4 cfm (113 L/min)
• Vibration level: 4.35 m/s²
• Minimum hose size: 3/8 inch (10 mm)
• Air inlet: 1/4 inch BSP with 360° rotating air inlet
• Weight: 1.22 kg

Compatibility and Accessories

• Compatible with standard 1/4 inch BSP airline connectors
• Includes a 1/4 inch BSP airline connector

Installation

• Connect the tool to a compatible compressed air supply using a 1/4 inch BSP airline hose
• Ensure the air inlet is securely attached and the air pressure is set to 90 psi

Usage

• Use the rear regulator to adjust the speed as needed
• Operate the tool by pressing the trigger, applying steady pressure for effective fastening or loosening
• Utilize the 360° rotating air inlet to prevent kinking of air lines during use

Other Information

• This product is manufactured by Draper and is suitable for automotive repair and home improvement tasks requiring a compact, lightweight air ratchet.
