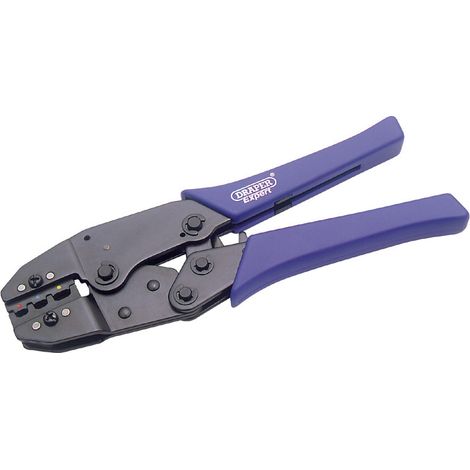

Draper Expert 220mm Ratchet Action Terminal Crimping Tool Model 35574

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by GravaHaus and

Product information

Description

General description

This professional-grade Draper RCT Expert 220mm Ratchet Action Terminal Crimping Tool is designed for crimping insulated terminals with precision and safety. Made from carbon steel with hardened and tempered jaws, it ensures durable and reliable performance. The tool features a chemically blacked finish and PVC grips for comfort and safety, allowing continuous crimping at a preset tension for accurate and consistent results, reducing rework. It is suitable for both professional electricians and DIY enthusiasts, making it ideal for various wiring projects.

Technical specifications

Material: Carbon steel with blackened finish

Handle: PVC grips for comfort and safety

Dimensions: approximately 29.7 x 11.7 x 2.6 cm (L x W x H)

Color: Blue and black

Suitable crimping ranges for insulated terminals:

Red channel: 0.5-1.00 mm²

Blue channel: 1.5-2.5 mm²

Yellow channel: 4.0-6.0 mm²

Compatibility and accessories

Compatible with insulated terminals in the following ranges:

Red: 0.5-1 mm²

Blue: 1.5-2.5 mm²

Yellow: 4-6 mm²

Installation

No installation required. Simply select the appropriate crimping channel for your terminal size and use the ratchet mechanism to apply consistent pressure for a secure crimp.

Usage

Insert the insulated terminal into the appropriate crimping channel based on its size.

Position the terminal correctly in the jaws.

Operate the ratchet handle to apply crimping force until the preset tension is reached.

Remove the crimped terminal and proceed with your wiring project.

Other information

This crimping tool is suitable for professional use and DIY projects involving electrical wiring and terminal crimping.

Features

Brand
DRAPER TOOLS
Power source
Manual
Shape
Rectangular
Height
2.6 cm
Width
11.7 cm
Length
29.7 cm
Material
PVC
Weight
520 g
Actuation typ
Manual
Jaw type
Insulated terminal
Crimping tool application
Lugs
ManoMano Reference
ME1309220
MMID
369670890068
Product code
5010559355747
EAN
5010559355747
