DXL360S Digital Magnetic Inclinometer, Digital Protractor with LCD, Dual-Axis Digital Inclinometer, High Precision ±0.05°, for Woodworking, Construction, Automotive

General Description

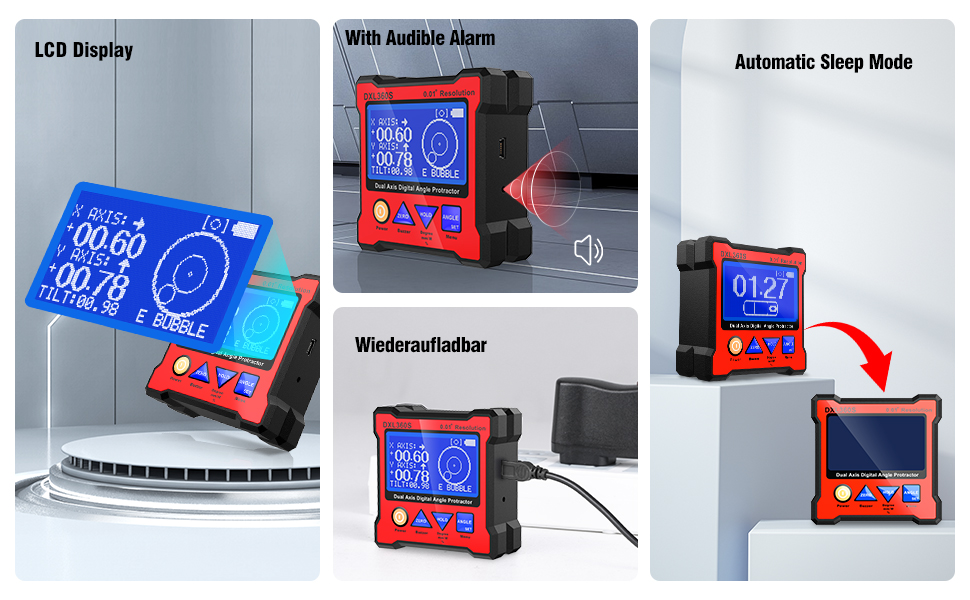

The DXL360S Magnetic Digital Inclinometer is a high-precision measuring tool designed for woodworking, construction, automotive, and many other applications. It offers a unique 360° measuring range and ±40° dual-axis measurement. Its LCD screen makes data easy to read, and gyroscopic technology allows for accurate measurement of tilt angles. In addition, it is equipped with an adjustable audible alarm function for a specified angle.

Technical Specifications

• Color: Red

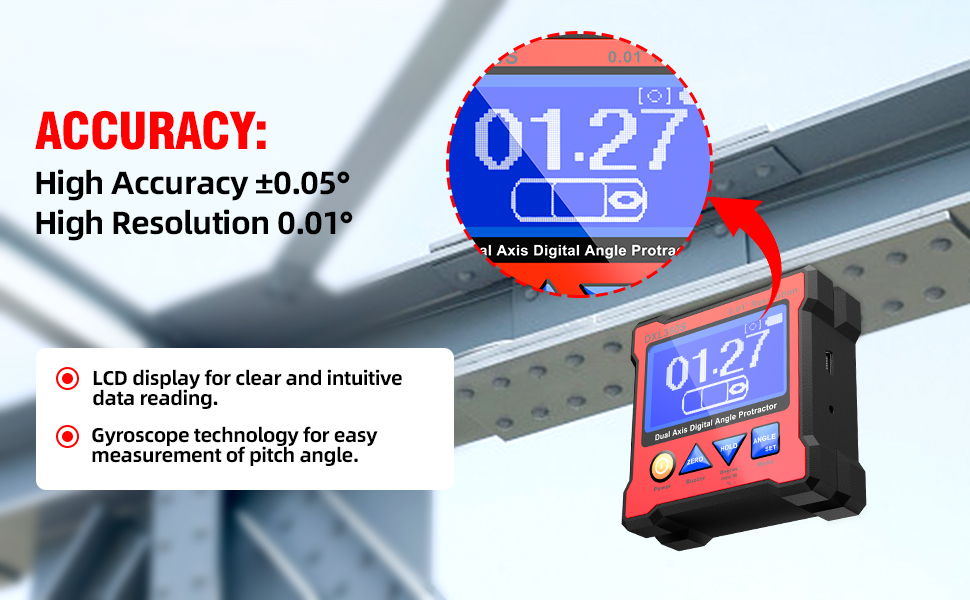

• Accuracy: 0 to 20°: ± (0.05°), 20 to 70°: ± (0.1°), 70 to 90°: ± (0.05°)
• Measuring Range: Single axis: 360°, Dual axis: ±40°
• Resolution: 0.01°
• Response Time: < 0.4 seconds
• Zero Offset Drift Angle per °C: 0.0058° (typical)
• Operating Temperature: 0 to 50 °C (32 to 122 °F)
• Storage Temperature: -10 to 60 °C (14 to 140 °F)
• User Interface: Monochrome LCD screen with backlight
• Power Supply: 3.7V rechargeable lithium-polymer battery
• Charging Port: 5V mini USB Type B 500mA
• Power Consumption: Standby: 10µA, Operating: 20mA
• Battery Life (Standby): 4,000 hours
• Battery Life (Operating): 40 hours
• Magnetic Base: Attaches on all 4 corners
• Magnetic Strength: N48
• Item Size: Approx. 7 x 7 x 2.8 cm
• Item Weight: Approx. 119.7 g
• Package Size: Approx. 12.5 x 10 x 5.5 cm
• Package Weight: Approx. 270 g

Compatibility and Accessories

• 1 * Digital Angle Protractor
• 1 * USB Cable
• 1 * Storage Bag
• 1 * User Manual

Installation

The Level Box is designed with a four-sided V-shape and a five-sided magnetic base, allowing the angle measuring device to be attached to any steel object or corner. Installation is quick and easy.

Operation

To use the inclinometer, press the angle button on the first face and rotate it slowly while holding the rotation axis towards the other test face. Once the device is stationary, the angle is clearly displayed on the LCD screen.
