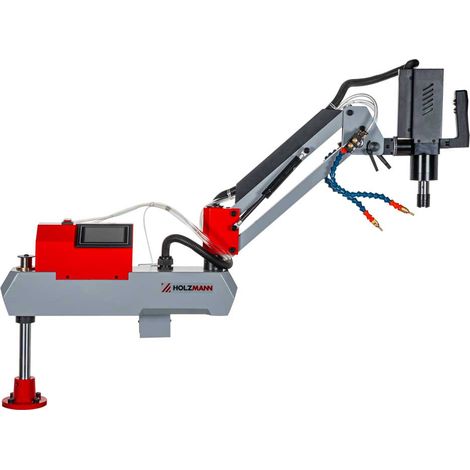

Electric tapping machine 230v m3-m16 with arm Holzmann gsm16er11230v

Sold by GLS72

Product information

Description

General description

The HOLZMANN GSM16E_R11_230V threading machine is designed for precision and safety in cutting threads ranging from M3 to M16 for steel and M3 to M20 for aluminum. It features a user-friendly touchscreen for easy operation, allowing for the setting of thread size and cutting depth.

Technical specifications

Thread diameter range: M3-M16 (steel), M3-M20 (aluminium)

Motor power (S1): 600 W

Voltage: 230 V / 50 Hz

Speed: 0 - 312 rpm

Sound pressure level: <70 dB(A)

Packaging dimensions: 690 mm (width) x 610 mm (length) x 190 mm (height)

Net weight: 28 kg

Gross weight: 33 kg

Compatibility and accessories

Collet set (DIN 371: M3, M5, M6, M8, M10; DIN 376: M12, M14, M16)

Optional accessory: GMMS machine stand

Installation

Maximum working range of the arm: 1030 mm

Maximum cutting depth: 400 mm

Usage

Two cutting modes: Manual (manually activated forward/reverse) and Automatic (reverse activated automatically upon reaching pre-selected thread depth)

Cutting head swivels by 90°

Includes air-oil cooling system

Operating pressure: 6-8 bar

Container for one bottle of oil included

Features

Brand
HOLZMANN MASCHINEN
Certification body
DIN
Origin
Made in Germany
Width
69 cm
Material
Metal
