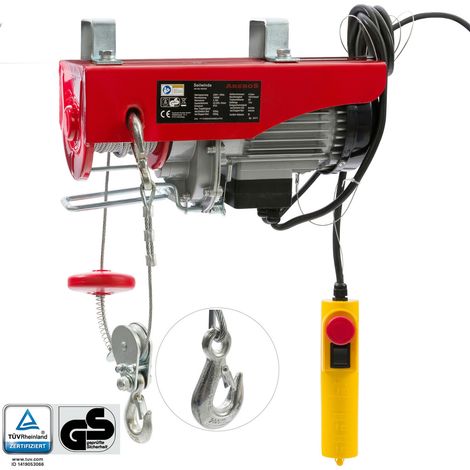

Electric Winch Hoist Lifting Engine Pulley Electric Wire Rope Winch 200/400 kg 1000W

Name: Electric Winch Hoist Lifting Engine Pulley Electric Wire Rope Winch 200/400 kg 1000W
Brand: AREBOS
SKU: 4260199757482
Availability: OutOfStock
Rating: 4.29 (7 reviews)

~~£129.99~~

Product out of stock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Product information

Description

General description

The AREBOS Electric Rope Hoist is a powerful and reliable tool designed for lifting heavy loads with ease. Featuring a high-performance 1000 W copper gear motor, this electric cable winch can lift loads ranging from 200 kg (without pulley) to 400 kg (with pulley). It is ideal for both private and professional use in workshops, garages, and construction sites.

Technical specifications

Rated power: 1000 W

Rated lifting weight: 200 kg (single hook) / 400 kg (double hook)

Lifting speed: 8 m/min (single hook) / 4 m/min (double hook)

Maximum lifting height: 12 m (single hook) / 6 m (double hook)

Cable length: 65 cm

Remote control cable length: 1.5 m

Noise level: 71 dB(A)

Rated frequency: 50 Hz

Rated voltage: 230 V

Rated current: 4.4 A

Protection degree: IP 54

Safety class: M1

Steel rope diameter: 4.0 mm

Steel rope traction resistance: 1870 N/mm²

Operating system: S3 20%-10 min

Product weight: 16.7 kg

Color: Red

Installation

The installation of the AREBOS Electric Rope Hoist is straightforward, and all necessary mounting materials are included in the delivery. Ensure to follow the user manual for proper setup.

Usage

This electric cable pull is perfect for lifting and moving heavy loads in various settings, including garages, warehouses, and workshops. It can be operated safely from the ground using the convenient one-hand wired remote control, which features an emergency stop button for added safety.

Other information

The AREBOS Electric Rope Hoist is TÜV certified, ensuring safe operation. The product comes with a user manual for guidance. The AREBOS pivoting arm is sold separately and can be purchased additionally.

Features

Brand
AREBOS
Colour
Grey / Yellow / Red
Maximum load
400 kg
Remote operation
Yes
Cable diameter
4 mm
Supplied with hauling pulley
Yes
Elevation height
12 m
IP rating
IP54
Width
14.5 cm
Length
38 cm
Work cable length
1.5 m
Material
Steel
Operating Mode
Electric
Weight
16.7 kg
Presence of brake
Yes
Power
1000 W
Power supply
Electric
Voltage
230 V
Winch operating type
Straight Line Pull
Remote control type
Corded
Type of winches
Crank-operated
Sold with cable
Yes
Traction speed
4 m/min
ManoMano Reference
ME6752698
MMID
236489773192
Product code
4260199757482
EAN
4260199757482

Customer reviews

4,3

/ 7 Reviews

Reviews verified by ManoMano

DDaniel

Published on 01/11/2023, France

A priori good product to check in use. However, the manufacturer's technical support for obtaining information before delivery is poor: I was unable to obtain the dimensions of the hoist's fixing flanges in order to prepare its installation in advance.

1 person found this helpful

MManoMano Customer

Published on 05/09/2022, France

great product!!! packaging done with care I am very satisfied with this brand which packs its equipment well which proves its seriousness thank you !!!

Jjean louis

Published on 04/06/2026, France

It does the job it's supposed to do.

MManoMano Customer

Published on 04/06/2021, France

Well designed, easy to maneuver. Quality / price ratio.

1 person found this helpful
