Ellsi Multiuse 3-in-1 Brushed Brass Finish Hot Water Kitchen Tap Mixer

Name: Ellsi Multiuse 3-in-1 Brushed Brass Finish Hot Water Kitchen Tap Mixer
Brand: ELLSI
SKU: 158324
Price: 605 GBP
Availability: InStock

Sold by Compare The Bathroom Ltd

Product information

Description

General description

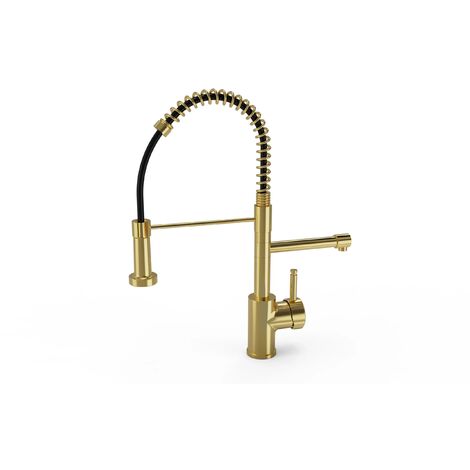

Ellsi multiuse 3-in-1 brushed brass finish instant hot boiling water tap kitchen mixer is designed to provide instant boiling hot water. It features a contemporary modern style with a high-quality brass internal construction and a brushed brass finish. The tap is deck mounted with a single lever that controls both temperature and flow, and it includes a swivel spout for added convenience. This mixer is suitable for all plumbing systems, preferably balanced, and requires a minimum operating pressure of 1 bar to a maximum of 3 bar.

Technical specifications

Height: 527mm

Width: 408mm

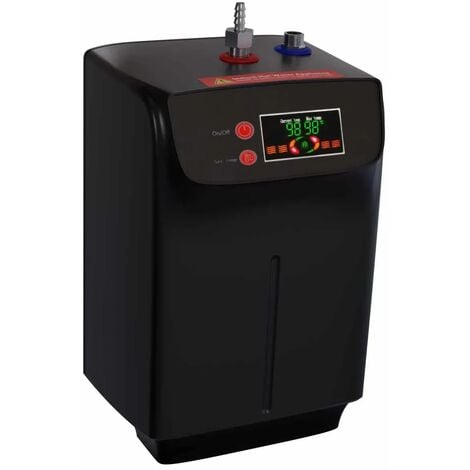

Tank capacity: 2.4 litres

Rated input: 1.5kW

Rated voltage: 220 - 240V AC, 50Hz

Standby power: 2.2W

IPX classification: IPX4

Static bar pressure: 1 bar

Dynamic bar pressure: 1.5 to 5 bar

Optimum working pressure: 1 bar min. to 3 bar max.

Plug type: fused 13A 3 pin plug

Power cord length: 910mm

Temperature control: 75 - 98 degrees C

Touch screen digital interactive control

Compatibility and accessories

Includes tap tails

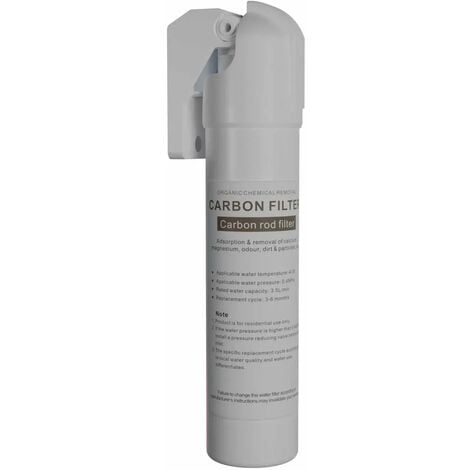

Includes carbon water filter

Includes fittings

Installation

Installation type: stand alone

Connection 1: 3/8" BSP female to 1/2" BSP male adaptor

Connection 2: 3/8" BSP female to quick connection adaptor

Wall mounted option available

Connection 1: 1/2" BSP male & PE tube adaptor

Connection 2: 1/2" BSP female & PE tube adaptor

PE tube length: 1000mm

Usage

Ideal for instant hot water needs in the kitchen

Temperature can be adjusted between 75 - 98 degrees C

Replacement cycle for carbon water filter: 3 / 6 months

Other information

Manufacturers 2-year guarantee

Construction material: ABS / glass

Plastic carbon fibre construction

Matt black finish available

Sizes approx: Height: 330mm, Width: 230mm, Depth: 210mm

Sizes approx: Height: 310mm, Width: 70mm, Depth: 88mm

Features

Brand
ELLSI
Material
Brass
Adapted for PRM
No
Finishing appearance
Brushed
With waste included
No
With anti-limescale function
No
Beak feature
Swivel
Plumbing faucet feature
Single-lever mixer
Intended use of the tap
Washbasin
Hand shower included
No
Pull-out spray
No
Water saving
No
Pipe thread size
1/2" (15x21)
Shape
Cylindrical
Beak shape
Swivel
Height
52.7 cm
Flow limiter
No
Temperature limiter
No
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Number of outlets
1
Max pressure
3 bar
Pcs per pack
1
Concealed tap
No
Wall-mounted tap
Yes
38°C Safety
No
Tap head only
Yes
Cool body thermostatic
No
Type of installation method
For mounting
Tap type
Single-lever mixer
ManoMano Reference
ME73054996
MMID
484602061687
Product code
158324
EAN
5056634503092
