Evolution 119-0006 R255TBLX 255mm Portable Jobsite Table Saw (with Stand) 240V NEW 2025

• More portable, powerful, accurate and easier to adjust and calibrate.
• Improved accuracy for every cut type and ease of set-up
• Dual Rack & pinion parallel fence for precision rip cuts. (left or right mount)

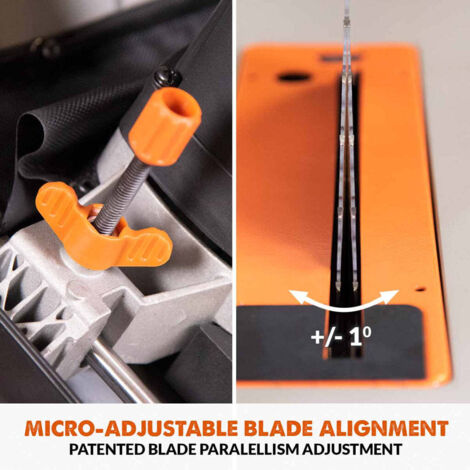

• Pat pend Blade Parallelism Adjustment- for pinch free, rapid, 8x4 sheet cutting.
• Quick Release Riving Knife with 2-axis adjustment.

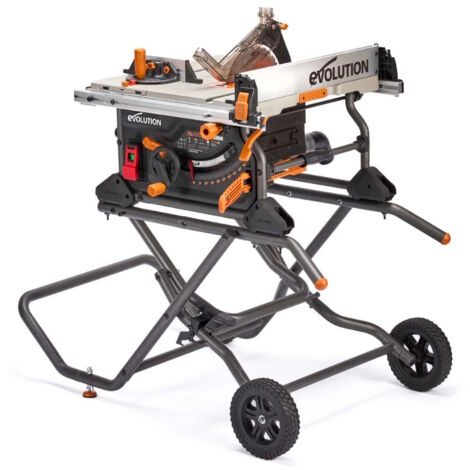

Evolution 255mm Portable Jobsite Table Saw With Stand

  The R255TBL Next Generation Portable Table Saw from Evolution is here. Designed to replace the RAGE5-S and other 255mm jobsite saws, it's more accurate, more reliable, more powerful and ready to cut wood, metal, plastics and more straight out of the box. The R255TBL Table Saw is more accurate. Designed from the ground up for maximum accuracy, the R255TBL features a Dual Rack & Pinion Rip-Fence for accurate, repeatable cuts. A gear driven Blade Height and Bevel Angle Mechanism offers accurate, repeatable adjustment with no guesswork. Our pat pending Blade-to-Rip-Fence Parallelism Adjustment allows for perfectly aligned cuts in full size sheets, no binding, no kickback. The R255TBL also features a Metal Throat Plate with corner height adjustment as standard - there's no plastic here. The R255TBL is more versatile. The Integrated Mitre Sled uses an industry-standard channel profile for compatibility with 3rd party accessories, as well as our own Mitre Guide. It offers a 85mm cut depth at 90 degrees and 58mm at 45 degrees.  It features a wider, cast table top designed to excel at handling 8x4 sheets but still weighs less than the RAGE5-S. Add in improved dust extraction, Multi-material cutting ability, tool free set-up and adjustment and you have the most versatile and best value for money Table Saw on the market. This R255TBL Table Saw is more portable. Smaller and lighter than the RAGE5-S the R255TBL is mounted within a light, roll-cage chassis, with integral carry handles. It’s an easy one man carry without the accessory wheeled stand, and superbly mobile on its large all-terrain wheels, easily passing straight through a standard width internal door (32") making it the perfect jobsite saw. The R255TBL is safer. Our unique high torque 1,650w motor is ready to cut new and reclaimed wood, mild steel, non-ferrous metal and much more, it features thermal overload protection and a paddle style emergency stop. The see-through polycarbonate blade guard offers improved cut visibility, and the Quick Release Riving Knife design features offset-angle and lateral adjustment for safer cutting. The new motor housing offers best in class dust extraction, better access for cleaning, and blade swaps are easier than ever before. The R255TBL 255mm Portable Table Saw is built to take on any home project or jobsite cutting task. It’s more powerful, more accurate, safer to use, and easier to set-up than more expensive table saws from other brands. Features:

• More portable, powerful, accurate and easier to adjust and calibrate.
• Improved accuracy for every cut type and ease of set-up
• Dual Rack & pinion parallel fence for precision rip cuts. (left or right mount)
• Pat pend Blade Parallelism Adjustment- for pinch free, rapid, 8x4 sheet cutting.
• Quick Release Riving Knife with 2-axis adjustment.
• Geared bevel angle selector 45° Range (+ and - 2°)
• Metal Throat Plate as standard.
• Crosscut Sled Insert – industry standard accessory channel profile for Mitre Guide
• Increased depth of cut 85mm at 90° and 58mm depth of cut at 45 degrees.
• Metal roll cage chassis with integrated carry handles.
• New blade guard, easier adjustment and enhanced cut visibility & dust extraction.
• More compact and portable wheeled support – rolls through standard width door.
• ADC Active Dust Collection. Improved dust extraction and release (all new dust system)
• Intelligent Motor Overload Protection.
• Paddle Style Emergency Stop Switch provides increased user safety.
• Reduced pack and storage size.
• Multi-Material cutting technology. One saw, one blade, cuts all.*
• More powerful, 1,650W hi-torque motor
• 45° bevel tilt and +/-60° mitre guide covers common, compound cutting angles.
• Increased table-top size.
• 4m durable cable with the built-in storage cable holder.

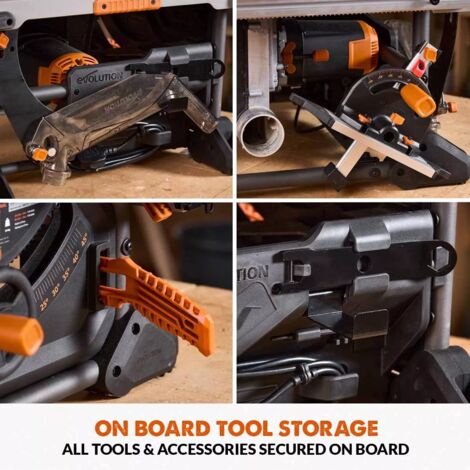

• All tools and accessories stored on tool frame.
• 3 Year limited warranty.
• Multi-material cut capable, Japanese Tungsten-Carbide-Tipped (TCT) 255mm 24T blade included.
• Available with or without folding, wheeled accessory stand.
• UK Customer support & servicing
• Accessory short riving knife available separately.

Specifications:

Motor (240V 50Hz):	1,650W
Speed No Load:	2,500rpm
Max. Bevel (Left):	45° (-2 to 47° with stop washers removed)
Blade Dia.:	255mm
No. of Teeth:	24
Bore:	25.4mm
Kerf:	2mm
Max. Depth of Cut (0°):	85mm
Max. Depth of Cut (45°):	58mm
Mild Steel Plate (Max. Thickness):	6mm
Rip Capacity - Right of the blade	650mm
Rip Capacity - Left of the blade	371mm
Riving Knife Thickness	1.8mm
Product Dimensions:	(With Leg Assembly) 1050mm x 750mm x 940mm
Product Dimensions:	(Without Leg Assembly) 880 x 730 x 330mm
Max. Table Dimensions	1200mm x 640mm
Min. Table Dimensions	745mm x 640mm
Packaging Dimensions:	910mm x 370mm x 750mm
Storage Dimensions:	H 1110mm x D 660mm x W 825mm
Product Weight:	21.2 kg
Packaged Weight:	33.5 kg
Sound Pressure Level LPA:	93,2dB(A) K:3dB(A)
Sound Power Level LWA:	106,2dB(A) K=3 dB(A)

Comes with:

28T Multi-Material TCT Blade

Blade Guard with Dust Extraction Port

Built In Crosscut Sled

Dust Extraction 90° Elbow

Mitre Gauge

Adjustable Rip Fence

Push Stick

Riving Knife

Blade Changing Spanners

Assorted fixings
