General description

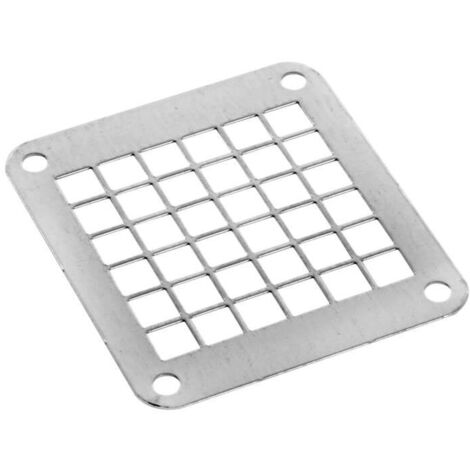

The exhaust outlet protection grille is designed for centrifugal fans in the Vortice C-series, available in both 230 V and 400 V configurations. This grille prevents accidental touch, ensuring safety when the unit is mounted within reach. It is made from durable galvanized steel wire and sheet, finished in a hammered grey enamel.Technical specifications
- Material: Galvanized steel wire and galvanized steel sheet
- Finish: Hammered grey enamel
Compatibility and accessories
- C 10 protective grille: Compatible with fans C 10/2 M and C 10/2 T
- C 15 protective grille: Compatible with fans C 15/2 M and C 15/2 T
- C 20 protective grille: Compatible with fans C 20/2 M and C 20/2 T
- C 25 protective grille: Compatible with fans C 25/2 M and C 25/2 T
- C 30 protective grille: Compatible with fans C 30/2 M, C 30/4 M, C 30/2 T, and C 30/4 T
- C 31 protective grille: Compatible with fans C 31/4 T
- C 35 protective grille: Compatible with fans C 35/4 M and C 35/4 T
- C 37 protective grille: Compatible with fans C 37/4 M and C 37/4 T
- C 40 protective grille: Compatible with fans C 40/4 M and C 40/4 T
- C 45 protective grille: Compatible with fans C 45/4 T
- C 46 protective grille: Compatible with fans C 46/4 T
Installation
Mounted on the outlet port of the C-range centrifugal fans.Usage
This grille is essential for ensuring safety in environments where the fan unit is accessible, preventing accidental contact with the fan blades.Other information
Dimensions in mm
| Type | A | B | C | D | E | F | G | ø H |
| C 10 | 98 | 88 | 1 | 82 | 67.5 | 72 | 67.5 | 6.5 |
| C 15 | 125 | 132 | 1 | 100 | 90.5 | 108 | 90.5 | 7 |
| C 20 | 145 | 145 | 1 | 123 | 102 | 123 | 102 | 8.5 |
| C 25 | 164 | 146 | 1 | 142 | 113.5 | 124 | 102 | 8.5 |
| C 30 | 162 | 150 | 1 | 137 | 113.5 | 126 | 113.5 | 8.5 |
| C 31 | 165 | 190 | 1 | 139 | 113.5 | 164 | 136.5 | 8.5 |
| C 35 | 200 | 190 | 1 | 174 | 148 | 164 | 136.5 | 8.5 |
| C 37 | 212 | 205 | 1 | 182 | 148 | 220 | 182.5 | 8.5 |
| C 40 | 244 | 250 | 1 | 208 | 182.5 | 214 | 182.5 | 8.5 |
| C 45 | 260 | 260 | 1 | 228 | 205.5 | 228 | 205.5 | 9 |
| C 46 | 295 | 336 | 1 | 265 | 240 | 306 | 274.5 | 11.5 |
