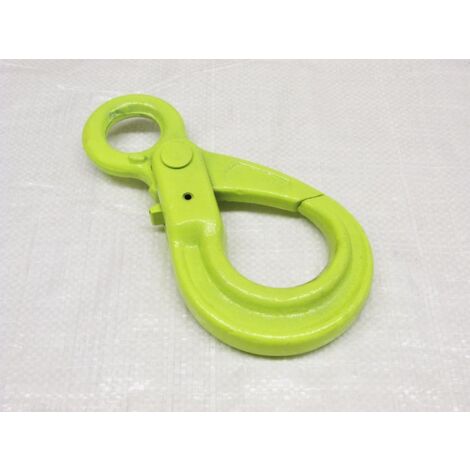

Eye Self Locking Hook Grade 100 16MM (G100 10 Ton Lifting Chain Sling Autolock)

Name: Eye Self Locking Hook Grade 100 16MM (G100 10 Ton Lifting Chain Sling Autolock)
Brand: SECUREFIX DIRECT
SKU: SFG10EAH16
Price: 52.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Eye Self Locking Hook Grade 100 16MM is a high-quality lifting accessory designed for the lifting gear industry, particularly for use with chain slings. This eye type autolock hook features a self-locking mechanism that enhances safety by automatically closing under load, preventing accidental release. The hook is made from Grade 100 material, which is lighter yet stronger than Grade 80 counterparts, making it an excellent choice for heavy lifting tasks.

Technical specifications

Material: Grade 100

Chain Size: 16MM

Finish: Light Green (Colour May Vary)

Factor of Safety: 4:1

Conforms to: ASTM A952

Product Codes and Specifications:

Product Code: SFG10EAH06 - SWL: 1.5 Tonne, A: 105.5 MM, B: 21.5 MM, C: 15 MM, D: 29 MM, E: 137 MM, F: 10 MM, G: 20.5 MM

Product Code: SFG10EAH08 - SWL: 2.5 Tonne, A: 134.5 MM, B: 26.5 MM, C: 20 MM, D: 37.5 MM, E: 172 MM, F: 12 MM, G: 26.5 MM

Product Code: SFG10EAH10 - SWL: 4 Tonne, A: 167 MM, B: 31 MM, C: 27 MM, D: 48.5 MM, E: 210 MM, F: 12.5 MM, G: 33.5 MM

Product Code: SFG10EAH13 - SWL: 6.7 Tonne, A: 206 MM, B: 41 MM, C: 33 MM, D: 57 MM, E: 266 MM, F: 16 MM, G: 39.5 MM

Product Code: SFG10EAH16 - SWL: 10 Tonne, A: 250 MM, B: 53 MM, C: 38 MM, D: 67 MM, E: 321 MM, F: 21 MM, G: 49 MM

Usage

This eye type autolock hook is primarily used in the lifting gear industry for chain slings, providing a reliable and safe lifting solution for various applications.

Other information

*Test Certificate Will Be Supplied Via Email*
*Please Note We Supply A Huge Variety Of Lifting Gear*
*FREE DELIVERY*

Features

Brand
SECUREFIX DIRECT
Colour
Light green
Warranty
1 year(s)
Pcs per pack
1
Maximum load
10000 kg
Width
25 cm
Material
Two-material
Weight
100 g
ManoMano Reference
ME27138863
MMID
891746711817
Product code
SFG10EAH16
EAN
0600988489233
