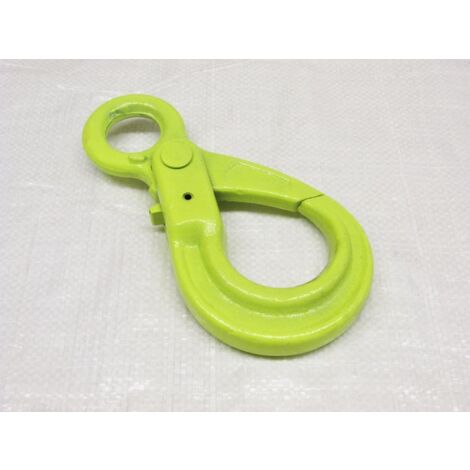

Eye Self Locking Hook Grade 100 10MM (G100 4 Ton Lifting Chain Sling Autolock)

Name: Eye Self Locking Hook Grade 100 10MM (G100 4 Ton Lifting Chain Sling Autolock)
Brand: SECUREFIX DIRECT
SKU: SFG10EAH10
Availability: OutOfStock

Product out of stock

Product information

Description

General description

Eye Self Locking Hook Grade 100 10MM is a high-quality lifting accessory designed for safety and efficiency in the lifting gear industry. This autolock hook features a self-locking mechanism that ensures the latch closes automatically under load, providing an added layer of safety. The hook is suitable for chain sizes of 10MM and is made from Grade 100 material, which is lighter yet stronger than Grade 80 counterparts.

Technical specifications

Material: Grade 100

Finish: Light Green (Colour May Vary)

Factor of Safety: 4:1

Conforms to: ASTM A952

Available Product Codes and Specifications:

Product Code: SFG10EAH06 - SWL: 1.5 Tonne, A: 105.5 MM, B: 21.5 MM, C: 15 MM, D: 29 MM, E: 137 MM, F: 10 MM, G: 20.5 MM

Product Code: SFG10EAH08 - SWL: 2.5 Tonne, A: 134.5 MM, B: 26.5 MM, C: 20 MM, D: 37.5 MM, E: 172 MM, F: 12 MM, G: 26.5 MM

Product Code: SFG10EAH10 - SWL: 4 Tonne, A: 167 MM, B: 31 MM, C: 27 MM, D: 48.5 MM, E: 210 MM, F: 12.5 MM, G: 33.5 MM

Product Code: SFG10EAH13 - SWL: 6.7 Tonne, A: 206 MM, B: 41 MM, C: 33 MM, D: 57 MM, E: 266 MM, F: 16 MM, G: 39.5 MM

Product Code: SFG10EAH16 - SWL: 10 Tonne, A: 250 MM, B: 53 MM, C: 38 MM, D: 67 MM, E: 321 MM, F: 21 MM, G: 49 MM

Other information

Test Certificate will be supplied via email

Free delivery available

Features

Brand
SECUREFIX DIRECT
Colour
Light green
Warranty
1 year(s)
Pcs per pack
1
Maximum load
4000 kg
Width
1 cm
Material
Two-material
Weight
100 g
ManoMano Reference
ME27134971
MMID
391473804548
Product code
SFG10EAH10
EAN
0600988489219
