Eye Sling Hook with Latch 10MM Grade 100 (G100 4 Ton Safety Catch Chain Lifting)

Name: Eye Sling Hook with Latch 10MM Grade 100 (G100 4 Ton Safety Catch Chain Lifting)
Brand: SECUREFIX DIRECT
SKU: SFG10ESH10
Availability: OutOfStock

Product out of stock

Product information

Description

General description

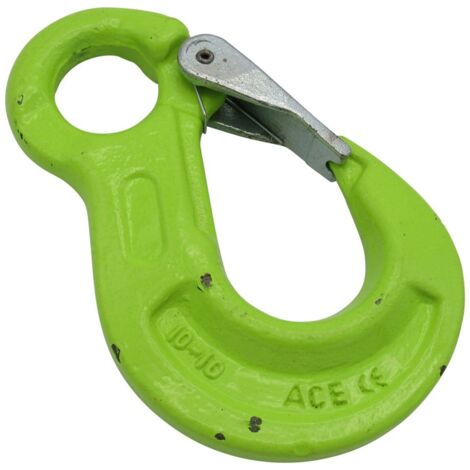

Eye Sling Hook with Latch is a high-quality lifting accessory designed for the lifting gear industry, specifically for use with chain slings. This hook features a safety catch and is made from Grade 100 material, which is lighter yet stronger than Grade 80 counterparts. The eye design allows for easy attachment to various objects, ensuring versatility in lifting applications.

Technical specifications

Chain Size: 10MM

Material: Grade 100

Finish: Light Green (Colour May Vary)

Factor of Safety: 4:1

Conforms to: ASTM A952

Product Codes and Specifications:

Product Code: SFG10ESH06 - SWL: 1.5 Tonne, A: 79 MM, B: 22 MM, C: 17 MM, D: 22 MM, E: 110 MM, F: 10.5 MM, G: 19.5 MM

Product Code: SFG10ESH08 - SWL: 2.5 Tonne, A: 97.5 MM, B: 29 MM, C: 18.5 MM, D: 26.5 MM, E: 137 MM, F: 10.5 MM, G: 24.5 MM

Product Code: SFG10ESH10 - SWL: 4 Tonne, A: 119.5 MM, B: 37 MM, C: 26.5 MM, D: 29 MM, E: 170 MM, F: 16 MM, G: 33 MM

Product Code: SFG10ESH13 - SWL: 6.7 Tonne, A: 155 MM, B: 45 MM, C: 32 MM, D: 39 MM, E: 220 MM, F: 20 MM, G: 42 MM

Product Code: SFG10ESH16 - SWL: 10 Tonne, A: 183 MM, B: 54 MM, C: 40 MM, D: 44.5 MM, E: 255 MM, F: 25 MM, G: 49.5 MM

Other information

*Test Certificate will be supplied via email.*

Features

Brand
SECUREFIX DIRECT
Colour
Light green
Warranty
1 year(s)
Pcs per pack
1
Maximum load
4000 kg
Width
1 cm
Material
Two-material
Weight
100 g
ManoMano Reference
ME27134068
MMID
763458716653
Product code
SFG10ESH10
EAN
0600988489387
