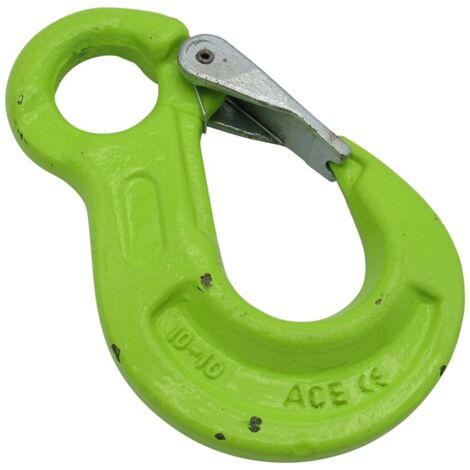

Eye Sling Hook with Latch 16MM Grade 100 (G100 10 Ton Safety Catch Chain Lifting)

Name: Eye Sling Hook with Latch 16MM Grade 100 (G100 10 Ton Safety Catch Chain Lifting)
Brand: SECUREFIX DIRECT
SKU: SFG10ESH16
Price: 35.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Eye Sling Hook with Latch is a high-quality lifting accessory designed for the lifting gear industry, specifically for chain slings. This hook features a safety catch and is made from Grade 100 material, which is lighter yet stronger than Grade 80 counterparts. The eye design allows for easy attachment to various objects.

Technical specifications

Chain Size: 16MM

Material: Grade 100

Finish: Light Green (Colour May Vary)

Factor of Safety: 4:1

Conforms to: ASTM A952

Product Codes and Specifications:

Product Code: SFG10ESH06 - SWL: 1.5 Tonne, A: 79 MM, B: 22 MM, C: 17 MM, D: 22 MM, E: 110 MM, F: 10.5 MM, G: 19.5 MM

Product Code: SFG10ESH08 - SWL: 2.5 Tonne, A: 97.5 MM, B: 29 MM, C: 18.5 MM, D: 26.5 MM, E: 137 MM, F: 10.5 MM, G: 24.5 MM

Product Code: SFG10ESH10 - SWL: 4 Tonne, A: 119.5 MM, B: 37 MM, C: 26.5 MM, D: 29 MM, E: 170 MM, F: 16 MM, G: 33 MM

Product Code: SFG10ESH13 - SWL: 6.7 Tonne, A: 155 MM, B: 45 MM, C: 32 MM, D: 39 MM, E: 220 MM, F: 20 MM, G: 42 MM

Product Code: SFG10ESH16 - SWL: 10 Tonne, A: 183 MM, B: 54 MM, C: 40 MM, D: 44.5 MM, E: 255 MM, F: 25 MM, G: 49.5 MM

Other information

Test Certificate will be supplied via email

Free delivery available

Features

Brand
SECUREFIX DIRECT
Width
1.6 cm
Weight
100 g
Material
Two-material
Colour
Light green
