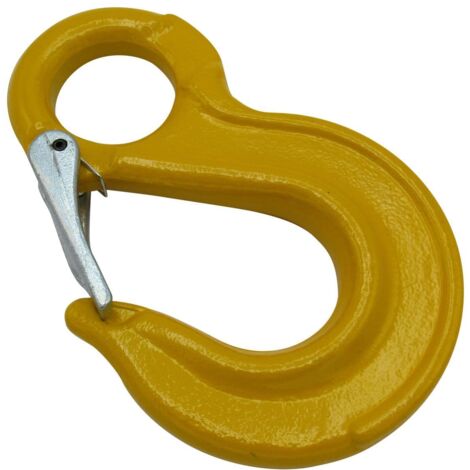

Eye Sling Hook with Latch 16MM Grade 8 (G80 8 Ton Safety Catch Chain Lifting)

Name: Eye Sling Hook with Latch 16MM Grade 8 (G80 8 Ton Safety Catch Chain Lifting)
Brand: SECUREFIX DIRECT
SKU: SFYASESH16
Availability: OutOfStock

Product out of stock

Product information

Description

General description

Eye Sling Hook with Latch 16MM Grade 8 (G80) is a high-quality lifting accessory designed for the lifting gear industry, specifically for use with chain slings. The eye design allows for easy attachment to various objects, ensuring versatility in lifting applications.

Technical specifications

Material: Grade 80 (G80)

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Available Product Codes and Specifications:

SFYASESH07: SWL 2 Tonne, A 96 MM, B 24 MM, C 17 MM, D 27.5 MM, E 132 MM, F 11 MM, G 24.5 MM

SFYASESH10: SWL 3.15 Tonne, A 117 MM, B 32 MM, C 21 MM, D 36 MM, E 167 MM, F 14.8 MM, G 37.8 MM

SFYASESH13: SWL 5.3 Tonne, A 151 MM, B 42 MM, C 27.5 MM, D 38.5 MM, E 219 MM, F 20 MM, G 42 MM

SFYASESH16: SWL 8 Tonne, A 182 MM, B 49 MM, C 35 MM, D 47.5 MM, E 253 MM, F 23.5 MM, G 49.5 MM

SFYASESH20: SWL 12.5 Tonne, A 218 MM, B 60 MM, C 42 MM, D 47 MM, E 302 MM, F 24 MM, G 62 MM

SFYASESH22: SWL 15 Tonne, A 236 MM, B 77 MM, C 45 MM, D 73 MM, E 345 MM, F 33 MM, G 61 MM

SFYASESH26: SWL 21.2 Tonne, A 357 MM, B 85 MM, C 60 MM, D 88.5 MM, E 395 MM, F 35 MM, G 62.5 MM

SFYASESH32: SWL 31.5 Tonne, A 435 MM, B 94 MM, C 65 MM, D 104 MM, E 475 MM, F 40 MM, G 87 MM

Other information

Test certificate will be supplied via email

Features

Brand
SECUREFIX DIRECT
Width
1.6 cm
Weight
0.1 kg
Colour
Yellow
Maximum load
8000 kg
