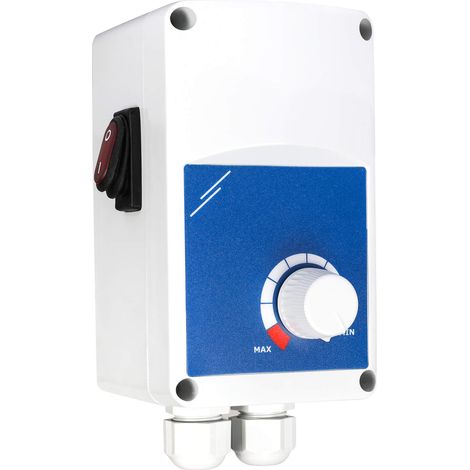

Fan speed switch / speed controller unit CasaFan WS

Name: Fan speed switch / speed controller unit CasaFan WS
Brand: CASAFAN
SKU: 98600
Price: 265.29 GBP
Availability: InStock
Rating: 5 (2 reviews)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by creoven

Product information

Description

General description

Fan speed switch / speed controller unit CasaFan allows for the regulation of fan speeds using the principle of generalized phase control. It is designed to provide smooth operation, although a buzzing sound may occur at lower speeds. For quieter environments, a step transformer is recommended.

Technical specifications

Model WS 1.5: Voltage 220-240V, Max Current 1.5A, Dimensions 86 x 86 x 65 mm, Protection Class IP55/44

Model WS 2.5: Voltage 220-240V, Max Current 2.5A, Dimensions 86 x 86 x 65 mm, Protection Class IP55/44

Model WS 5.0: Voltage 220-240V, Max Current 5.0A, Dimensions 83 x 160 x 71 mm, Protection Class IP54

Model WS 10.0: Voltage 220-240V, Max Current 10.0A, Dimensions 115 x 195 x 95 mm, Protection Class IP54

Compatibility and accessories

WS 1.5 and WS 2.5 are compatible with commercially available flush-mounted sockets and switch systems from other manufacturers (requires rotary knob for 6mm axis).

WS 5.0 and WS 10.0 are designed for surface-mounted sockets.

Installation

When connecting multiple fans to one controller, a 10% reserve load should be calculated.

Ensure attention is paid to the rated load and maximum load specifications.

Features

Brand
CASAFAN
Pcs per pack
1
Colour
White
Height
8.6 cm
IP rating
IP54
Width
8.6 cm
Material
Plastic
Weight
840 g
Voltage
220 V
ManoMano Reference
ME30902145
MMID
427683722476
Product code
98600
EAN
4024397401062

Customer reviews

5,0

/ 2 Reviews

Reviews verified by ManoMano

JJean-Charles

Published on 06/09/2025, France

Works properly with motor less than 10A
