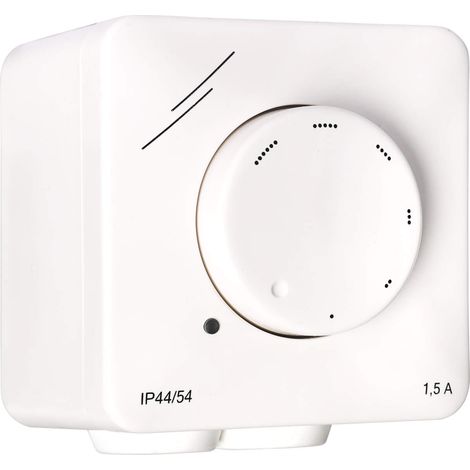

Fan speed switch / speed controller unit CasaFan WS

Name: Fan speed switch / speed controller unit CasaFan WS
Brand: CASAFAN
SKU: 98250
Price: 134.79 GBP
Availability: InStock
Rating: 5 (2 reviews)

Sold by creoven

Product information

Description

General description

Fan speed switch / speed controller unit CasaFan allows for the regulation of fan speeds using the principle of generalized phase control. It is designed to provide smooth operation, although a buzzing sound may occur at lower speeds. For quieter environments, a step transformer is recommended.

Technical specifications

Model WS 1.5: 220-240 V, 1.5 A, Dimensions: 86 x 86 x 65 mm, Protection class: IP55/44

Model WS 2.5: 220-240 V, 2.5 A, Dimensions: 86 x 86 x 65 mm, Protection class: IP55/44

Model WS 5.0: 220-240 V, 5.0 A, Dimensions: 83 x 160 x 71 mm, Protection class: IP54

Model WS 10.0: 220-240 V, 10.0 A, Dimensions: 115 x 195 x 95 mm, Protection class: IP54

Compatibility and accessories

WS 1.5 and WS 2.5 are compatible with commercially available flush-mounted sockets and switch systems from other manufacturers (requirement: rotary knob for 6mm axis). WS 5.0 and WS 10.0 are designed for surface-mounted sockets.

Installation

When connecting multiple fans to one controller, a 10% reserve load should be calculated, and attention must be paid to the rated load and maximum load specifications.

Features

Brand
CASAFAN
Pcs per pack
1
Colour
White
Height
11.5 cm
IP rating
IP54
Width
16 cm
Material
Plastic
Weight
650 g
Voltage
240 V
ManoMano Reference
ME30902181
MMID
733103117124
Product code
98250
EAN
4024397401048

Customer reviews

5,0

/ 2 Reviews

Reviews verified by ManoMano

JJean-Charles

Published on 06/09/2025, France

Works properly with motor less than 10A
