Product information

Description

General description

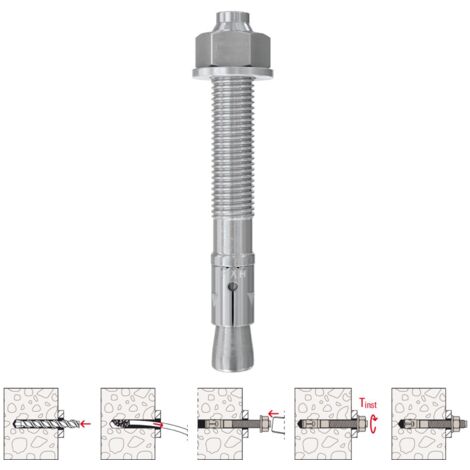

The FISCHER 523139 FXA 12 X 126 Through Bolt is designed for various applications including steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, gates, and façades. This product is made from zinc-plated steel and is suitable for use in concrete and natural stone with a dense structure.

Technical specifications

Dimensions: 12 mm x 126 mm

Building materials approved for: Concrete C20/25 to C50/60, non-cracked

Also suitable for: Concrete C12/15

Advantages

Standard anchorage depth achieves maximum load-bearing capacities, requiring fewer fixing points and smaller anchor plates.

Simple installation process with minimal torque slippage and only a few hammer blows.

Drive-in pin protects the thread from damage, ensuring faster installation and dismantling of attachments.

Features

Length
126 mm
Weight
1000 g
Diameter
12 mm
Product finish
Zinc-plated
Suitable for
Mineral / stone
Material
Steel
Type of dowel
Threaded rod
ManoMano Reference
ME4599135
MMID
545472638363
Product code
TRV_1237777
EAN
4048962183573

FISCHER 523139 FXA 12 X 126 THROUGH BOLT
