General description
With these flange nuts mounted on your tube beading machine, you can shape tubes as needed. Crafted from solid steel, these flange nuts are tear-resistant and heavy-duty, making them ideal for pipe bending. They feature precise design and manufacturing, ensuring exact sizes and shapes. When mounted on the tube beading machine, they facilitate the quick and easy creation of metal joint rings on metal tubes.Technical specifications
- Colour: Black
- Material: Steel
- Suitable for 20 mm connector of flange machine (SKU 141316)

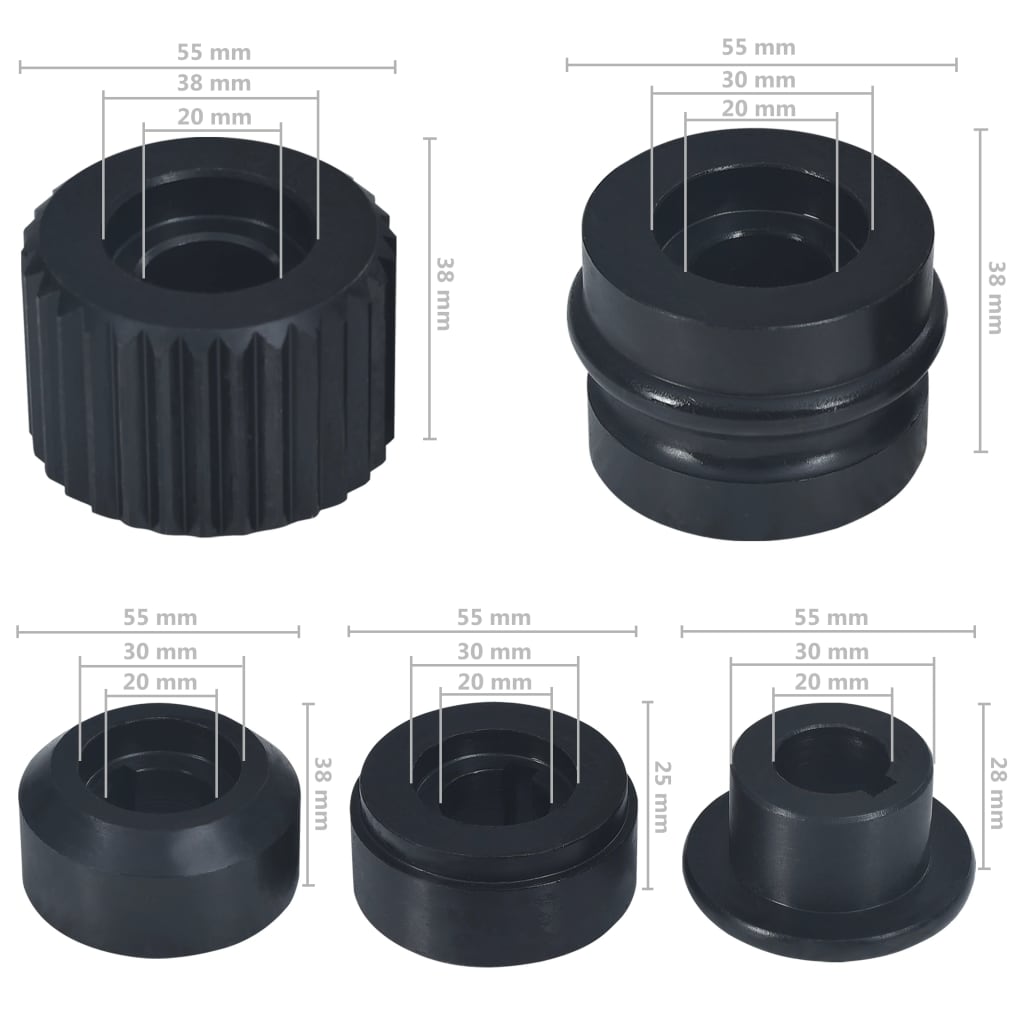

- Turning die set A (Width: 3 mm):
- Nut 1: Outer diameter: 55 mm, Inner diameter: 20/30 mm, Height: 28 mm
- Nut 2: Outer diameter: 53 mm, Inner diameter: 20/30 mm, Height: 25 mm
- Turning die set B (Width: 4.7 mm):
- Nut 1: Outer diameter: 55 mm, Inner diameter: 20/30 mm, Height: 28 mm
- Nut 2: Outer diameter: 53 mm, Inner diameter: 20/30 mm, Height: 25 mm
- Burring die set:
- Nut 1: Outer diameter: 53 mm, Inner diameter: 20/30 mm, Height: 25 mm
- Nut 2: Outer diameter: 51 mm, Inner diameter: 20/30 mm, Height: 25 mm
- Wiring die set:
- Outer diameter: 53 mm, Inner diameter: 20/30 mm, Height: 26 mm

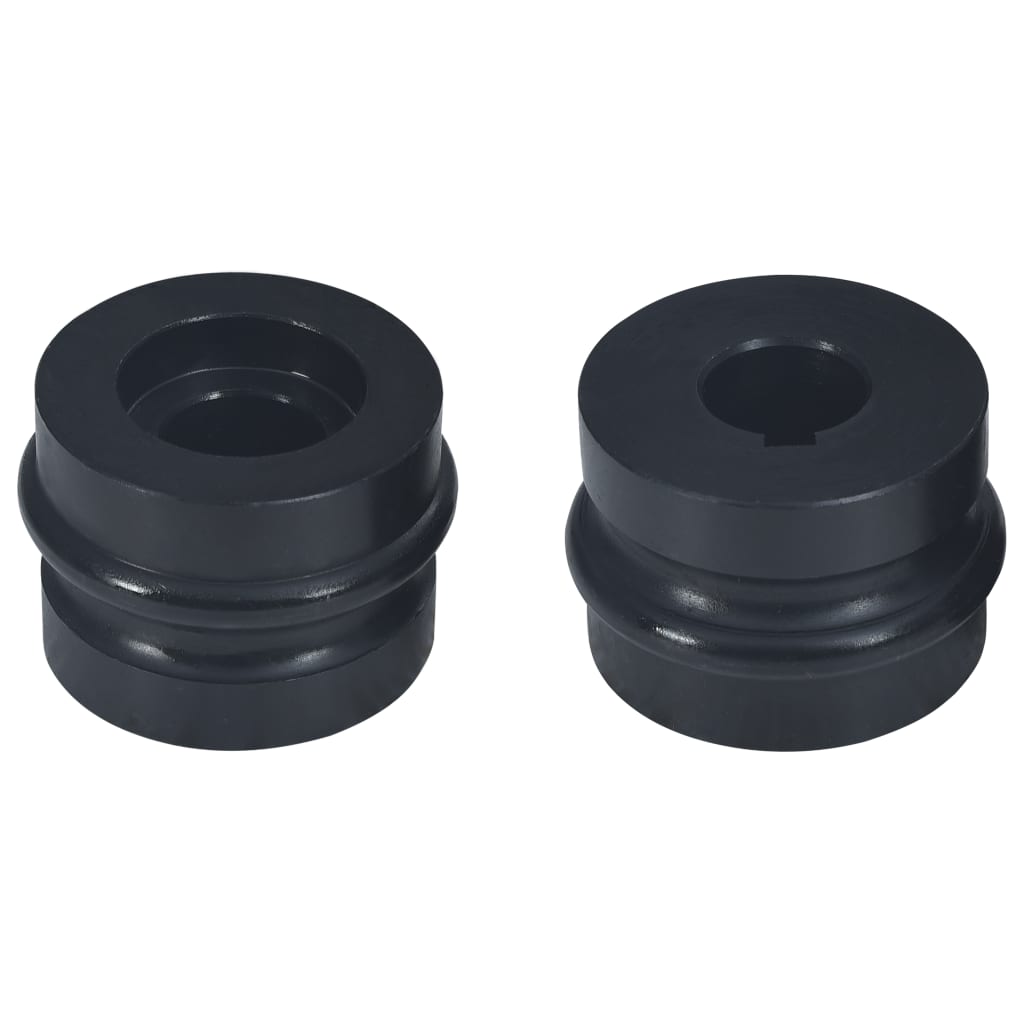

- Ogee bead die set:
- Outer diameter: 55 mm, Inner diameter: 20/30 mm, Height: 38 mm
- Crimping die set:
- Outer diameter: 55 mm, Inner diameter: 20/30 mm, Height: 38 mm

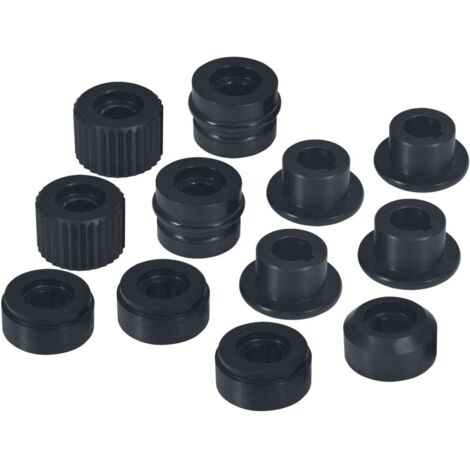

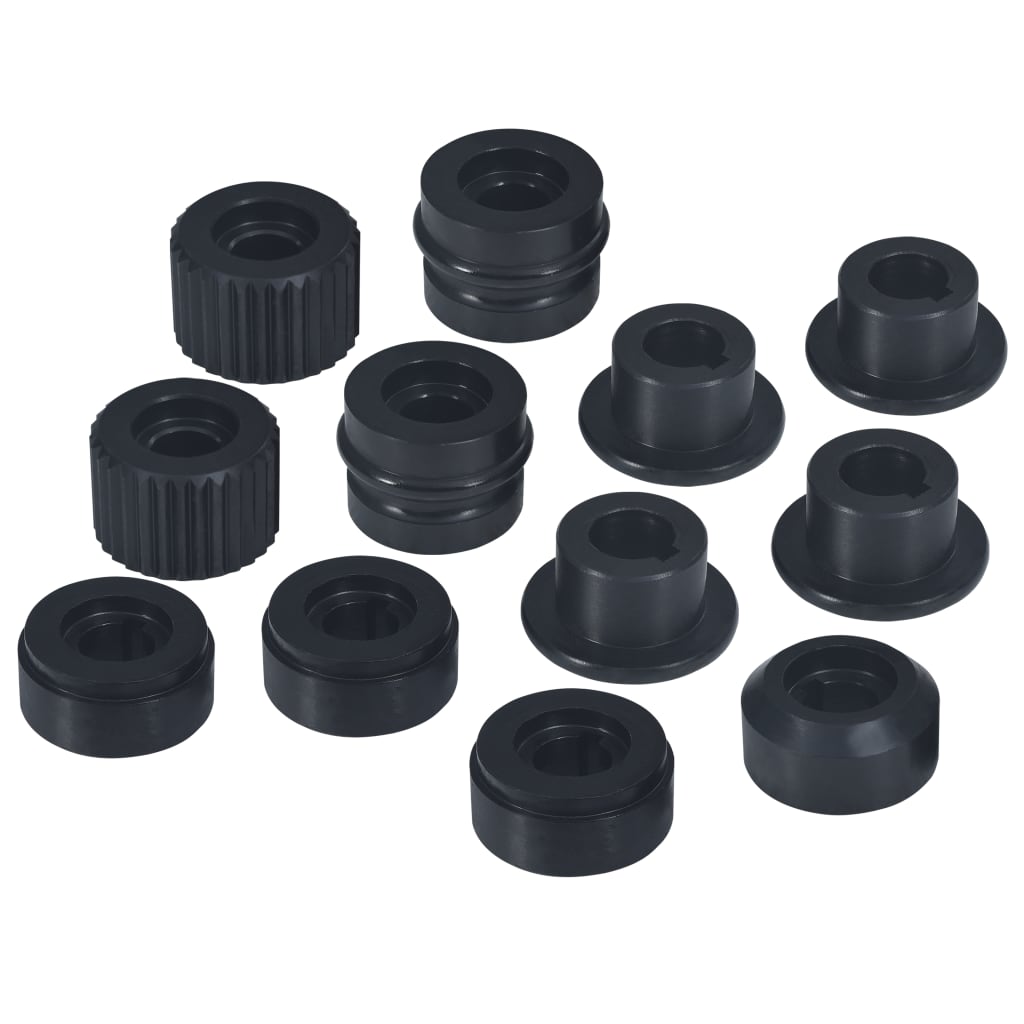

- Delivery contains: 12 x Nut
- SKU: 145388
Compatibility and accessories
Compatible with pipe bending machine (SKU 141316).Other information
