Product information

Description

General description

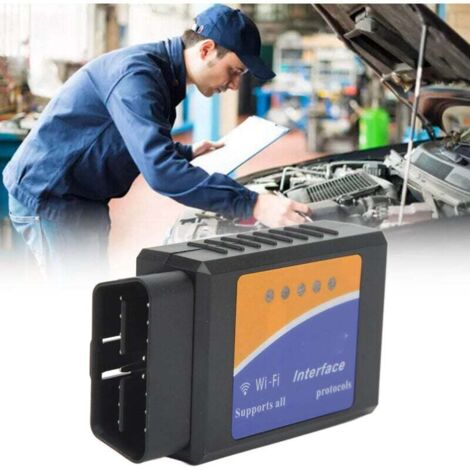

The ELM327 Wifi USB Scanner Code Reader is a versatile diagnostic interface designed for EOBD compliant vehicles. It allows users to read and clear diagnostic trouble codes, monitor real-time sensor data, and turn off the Check Engine Light. This device is compatible with various operating systems and software, making it an essential tool for car diagnostics.

Technical specifications

Item Type: Scanner

Material: ABS

SSID: WiFi

IP: 192.168.0.10

Port: 35000

Communication: WIFI

Main Chip: ST

Working Current: 65mA

Standby Current: 45mA

Working Temperature: -40℃ to 85℃

Working Humidity: Less than 60%

Compatibility and accessories

Compatible Systems: Windows XP, Windows 7/8, iOS, Android, Symbian

Compatible Software for Windows: ScanMaster ELM, ScanTool.net, PCMSCAN ELM

Compatible Software for iOS: Auto Doctor

Compatible Software for Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD

Compatible Software for Symbian: OBDScope

Usage

Read diagnostic trouble codes (both generic and manufacturer-specific) and display their meanings (over 3,000 generic code definitions available).

Clear trouble codes and turn off the malfunction indicator lamp (Check Engine Light).

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen Sensor Voltages / Associated Short Term Fuel Trims

Fuel Pressure

Many more supported protocols.

Other information

Supported Protocols:

SAE J1850 PWM (41.6 Kbauds)

SAE J1850 VPW (10.4 Kbauds)

ISO9141 2 (5 init bauds, 10.4 Kbauds)

ISO14230 4 KWP (5 init bauds, 10.4 Kbauds)

ISO14230 4 KWP (fast initialization, 10.4 Kbauds)

ISO15765 4 ADC (11-bit ID, 500 Kbauds)

ISO15765 4 ADC (29-bit ID, 500 Kbauds)

ISO15765 4 CAN (ID 11 bits, 250 Kbauds)

ISO15765 4 CAN (ID 29 bits, 250 Kbauds)

Features

Brand
YMYNY
Environmental certification
Energy Star
Material
Acrylonitrile butadiene styrene (ABS)
Maximum operating temperature
85 °C
Type of electronic module
System on module
ManoMano Reference
ME94091134
MMID
997375672525
Product code
XHWD-M-XXW-10012
EAN
6246356527981

For ELM327 Wifi USB Scanner Code Reader Car Diagnostic Interface Check Engine Light for EOBD Compliant Vehicles MUMU
